Gira KNX pohybový senzor 1,10 m čistá biely hodvábne matný 204027

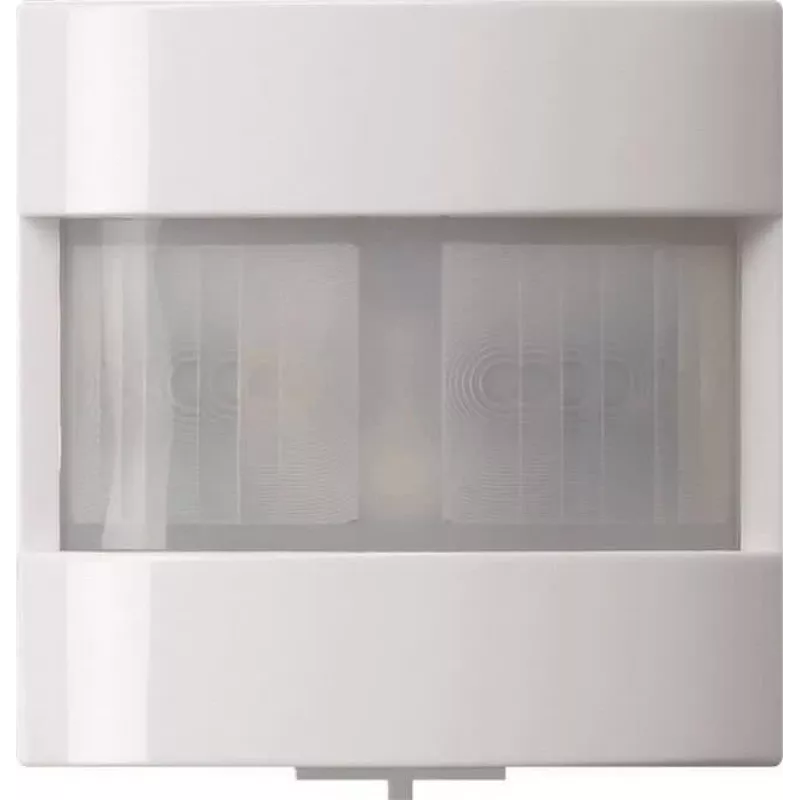

Detect motion across a full 180° with the Gira KNX Motion Detector, a flush-mounted sensor that combines passive infrared technology with an integrated brightness sensor for intelligent building automation.

Overview

Designed for KNX bus systems, this motion detector operates at a recommended mounting height of 1.10 m, achieving a detection diameter of approximately 12 m. The pure white, silk matte finish integrates seamlessly with Gira System 55, E2, Event, Esprit, and ClassiX switch ranges.

What stands out

• 180° detection angle for broad coverage
• Integrated brightness sensor (0–1000 lux) for daylight-dependent control
• Supports motion detection, presence detection, constant light control, and alarm functions
• Adjustable sensitivity and logic functions via ETS
• Flush-mounted design for discreet installation

Technical details

• Bus System: KNX (21-30 V DC)
• Sensor Type: Passive Infrared (PIR)
• Mounting Type: Flush-mounted
• Recommended Mounting Height: 1.10 m
• Detection Angle: 180°
• Detection Range: approx. 12 m diameter at 1.10 m height
• Brightness Measurement Range: 0 to 1000 Lux
• Operating Temperature: -5 °C to +45 °C
• Housing Material: Thermoplastic
• Protection Class: IP20

Our verdict

A versatile KNX motion detector with integrated light sensing, ideal for automated lighting and security in residential and commercial settings.
