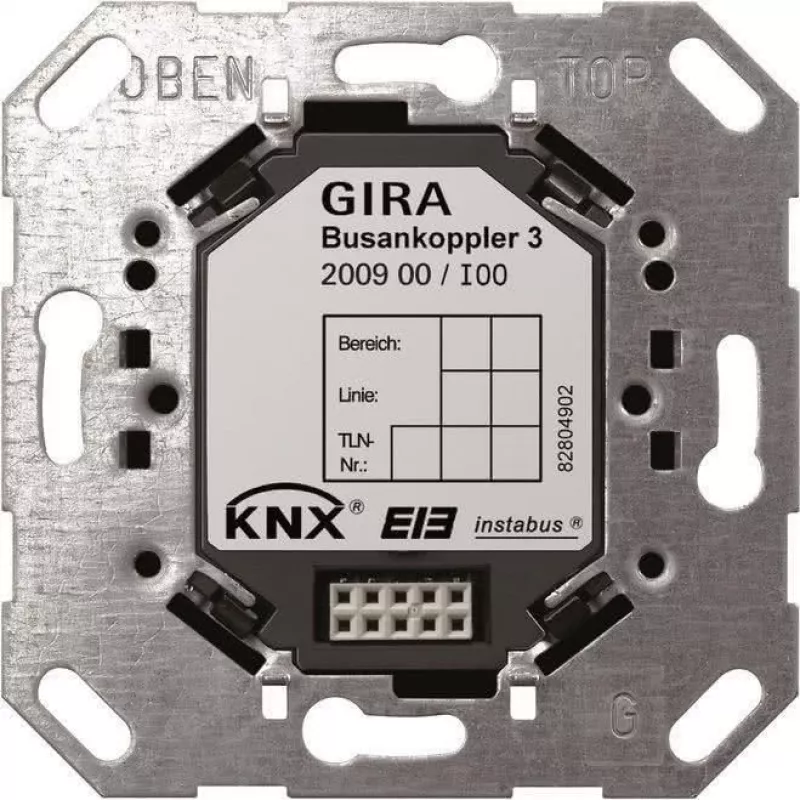

GIRA KNX zbernicový spojovač 3 externé senzory 200900

KNX bus coupler with three universal inputs for integrating conventional switches, push-buttons, or external sensors into a KNX installation. Each input can be configured for switching, dimming, blind control, value transmission, scene recall, or temperature measurement.

Advantages

Flexible input configuration supports potential-free contacts, NTC temperature sensors, and PT1000 temperature sensors. Built-in logic functions (AND, OR, XOR, gate) and threshold monitoring enable advanced automation scenarios without additional modules. Powered directly from the KNX bus, requiring no separate power supply.

Suitable for

• Retrofitting conventional switches and push-buttons into KNX smart home systems
• Connecting temperature sensors for room climate control
• Implementing complex logic and scene control in building automation

Key specifications

• Bus system: KNX
• Number of inputs: 3
• Input type: universal (potential-free contacts, NTC, PT1000)
• Functions per input: switching, dimming, blind control, value transmitter, scene recall, temperature measurement
• Logic functions: AND, OR, XOR, gate
• Threshold monitoring: yes
• Power supply: via KNX bus (approx. 5 mA current consumption)
• Mounting: flush-mounted in appliance box
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Programming: ETS (Engineering Tool Software)
• Connection: bus terminal and screw terminals for inputs
• Housing material: plastic

Recommendations

For KNX projects requiring flexible integration of third-party sensors or conventional wiring, this bus coupler provides a compact and reliable solution.
