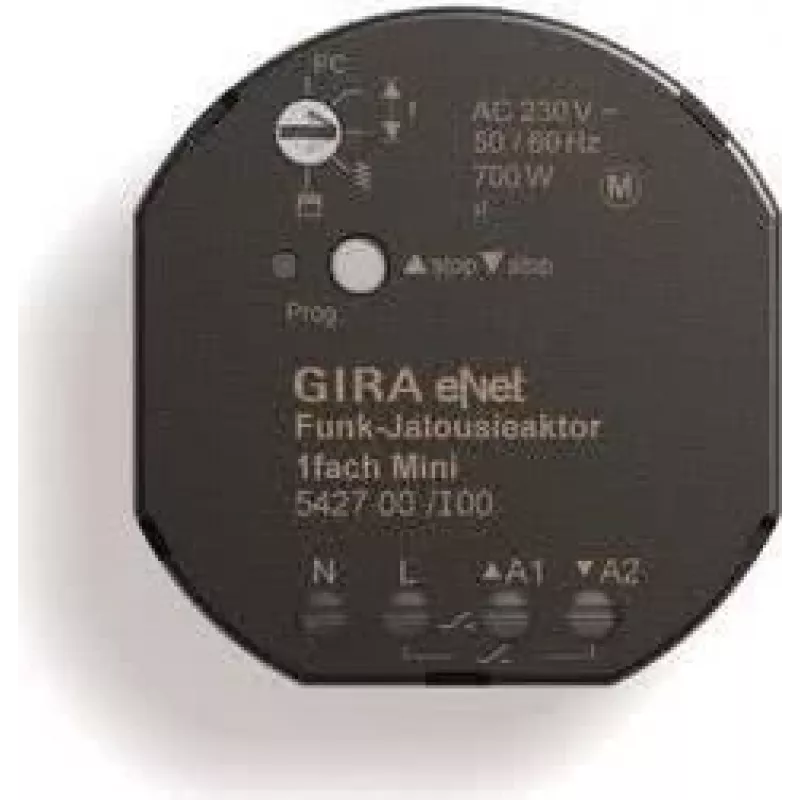

GIRA rádiový aktor pre rolety/žalúzie Mini 542700

Wireless shutter and blind actuator for controlling AC motors via Eltako-Funk protocol at 868.3 MHz. It offers local control inputs for conventional pushbuttons and supports up, down, stop, and slat adjustment functions.

Advantages

Flush-mounted design fits in deep switch boxes, with electronic overload protection and adjustable motor runtime from 0.5 to 150 seconds. Standby power consumption is below 0.5 W.

Suitable for

• Controlling AC shutter and blind motors
• Integration into Eltako-Funk wireless systems
• Installation in deep switch boxes with neutral conductor

Key specifications

• Wireless protocol: Eltako-Funk (868.3 MHz)
• Power supply: 230V AC, 50 Hz
• Max switching current: 4 A
• Max switching power: 500 W
• Mounting: flush-mounted
• Control inputs: 2 local inputs
• Standby power: < 0.5 W
• Operating temperature: -20°C to +50°C
• Protection rating: IP20
• Wireless range: up to 30 m indoors, 100 m outdoors

Recommendations

Requires neutral conductor. Verify compatibility with existing Eltako-Funk transmitters before installation.
