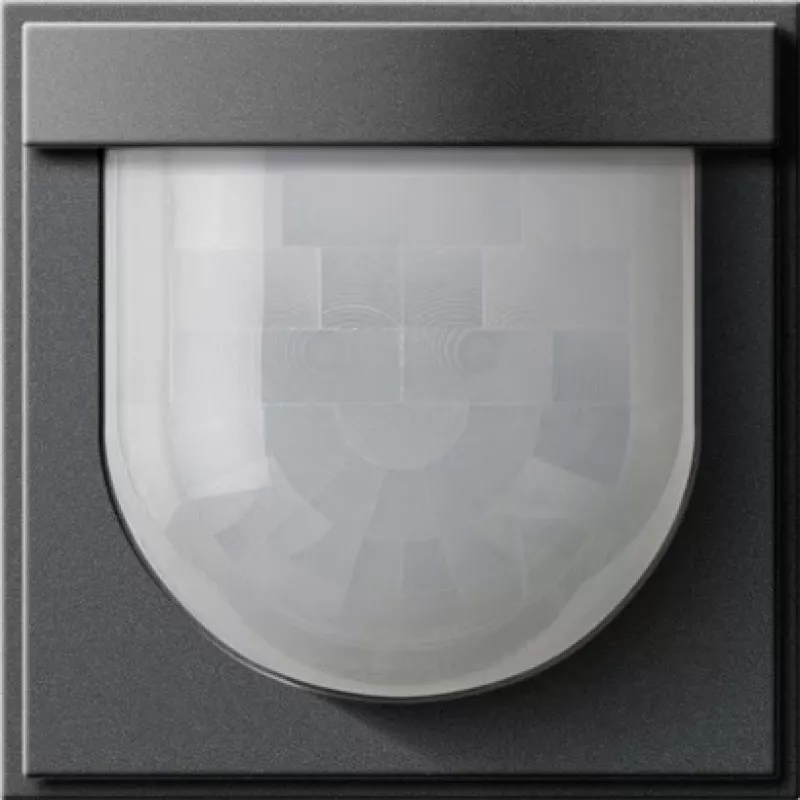

Gira System 3000 S3000 nadstavec detektora pohybu, TX_44, antracit, 2,20 m, 180° 537567

The Gira S3000 motion detector attachment brings intelligent presence detection to the System 3000 platform with a discreet TX_44 design in anthracite. Unlike standalone sensors, it mounts directly onto a compatible insert for a flush, integrated look. The 180° detection field covers up to 12 m forward and 8 m to each side at the recommended 2.20 m mounting height, with an anti-creep zone to reduce false triggers. Brightness threshold and time delay are adjustable, and a walk-test function simplifies commissioning.

Highlights

• 180° detection angle with 12 m forward range
• Adjustable brightness threshold from 1 to 1000 lux
• Time delay from 10 seconds to 30 minutes
• Anti-creep zone and walk-test function
• Teach-in function for brightness setpoint
• Flush-mounted attachment for System 3000 inserts

In daily use

This attachment works with switching, dimming, or blind control inserts from the System 3000 range. Sensitivity can be fine-tuned to the room, and operating modes include standard, short-term presence, long-term presence, and test. The UV-resistant thermoplastic housing suits both indoor and protected outdoor areas.

Full specifications

• Series: Gira System 3000
• Design line: Gira TX_44
• Mounting type: Flush-mounted
• Colour: Anthracite
• Recommended mounting height: 2.20 m
• Detection angle: 180°
• Detection range: 12 m forward, 8 m to each side
• Brightness threshold: 1–1000 lux
• Time delay: 10 s–30 min
• Operating temperature: -25 °C to +55 °C
• Housing material: Thermoplastic (UV-resistant)
• Protection class: IP44 (with TX_44 components)

Final note

For planning and installation, always refer to the current Gira System 3000 documentation.
