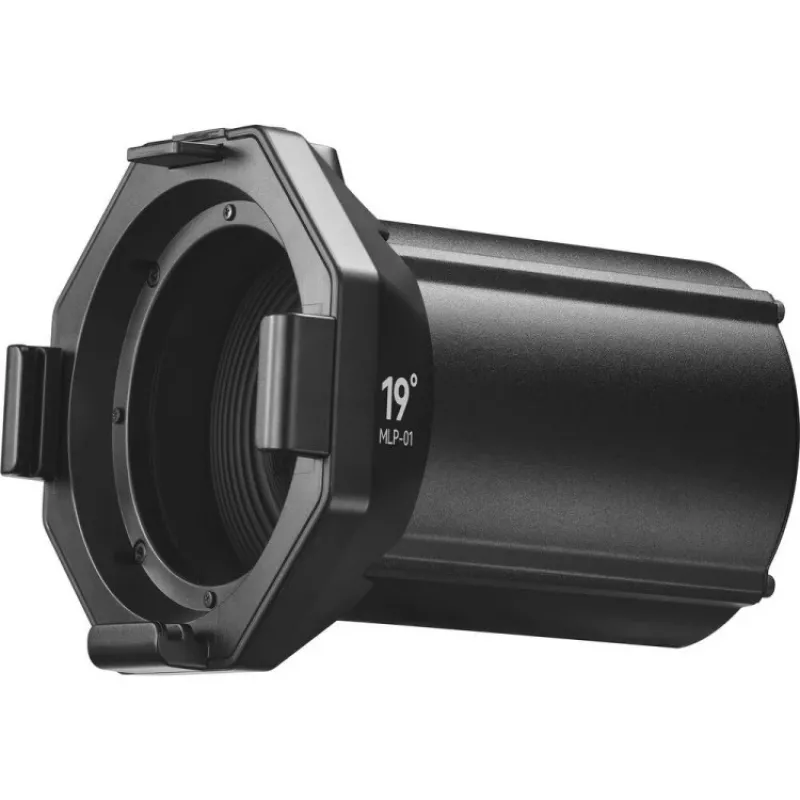

Godox MLP-01 projekčný objektív 19° pre Bowens-Mount LED svetlá

Standard LED studio lights often produce broad, uncontrolled illumination that can spill onto backgrounds and lack the precision needed for creative lighting effects. The Godox MLP-01 Projection Lens with a 19° beam angle solves this by attaching directly to Bowens mount LED lights, transforming them into focused spotlights capable of projecting sharp patterns, gobos, and defined light shapes with exceptional clarity. This optical tool is essential for photographers and videographers who need to sculpt light with precision, create dramatic highlights, or add texture to a scene without complex rigging.

Who is it for

This projection lens is ideal for studio photographers, portrait artists, product photographers, and videographers who use Godox Knowled series lights such as the M600D, M600Bi, M300D, M300Bi, M200D, or M200Bi, as well as any other Bowens mount LED fixtures. It is particularly valuable for those working in commercial photography, fashion, beauty, and theatrical productions where controlled light shaping and pattern projection are required. Whether you need to create a window-light effect, project a logo, or isolate a subject with a hard-edged beam, the MLP-01 delivers professional results.

Main features

• Precision 19° projection angle for focused, controlled lighting.
• Compatible with all Bowens mount LED lights, including Godox Knowled M-series.
• High-quality aspheric optical elements ensure sharp, clear projections with minimal distortion.
• Integrated gobo slot accepts B-size gobos for pattern projection.
• Includes 6 standard gobos and 5 color gels for immediate creative use.
• Rotatable gobo holder allows precise orientation of projected patterns.
• Focus adjustment for sharp or soft edges.
• Iris slot for optional iris diaphragm to control beam diameter.
• Color gel slot for adding color effects.
• Durable aluminum alloy construction with integrated heat dissipation.

Specifications

• Beam Angle: 19°
• Mount Type: Bowens Mount
• Lens Type: Aspheric Projection Lens
• Gobo Size Compatibility: B-size Gobos
• Gobo Slot: Yes
• Iris Slot: Yes (for optional iris diaphragm)
• Color Gel Slot: Yes
• Focus Adjustment: Yes
• Construction Material: Aluminum Alloy
• Light Compatibility: Godox Knowled M600D/M600Bi, M300D/M300Bi, M200D/M200Bi, and other Bowens Mount LED Lights
• Included Gobos: 6 (standard patterns)
• Included Color Gels: 5 (standard colors)
• Gobo Holder: Included, rotatable
• Optical Elements: High-quality optical elements for clear projection
• Heat Management: Integrated heat dissipation design
• Application: Studio photography, video production, theatrical effects

Tips

To achieve the sharpest projection, adjust the focus ring while the light is on and the gobo is inserted. For softer edges, defocus slightly. When using color gels, ensure they are fully inserted into the slot to avoid light leaks. The rotatable gobo holder allows you to align patterns precisely with your subject; rotate it slowly while observing the projection. For maximum light output, use with high-output Bowens mount LEDs like the Godox Knowled M600D. Always allow the lens to cool before handling after extended use, as the aluminum body can become warm.
