Godox Timolink TX bezdrôtový DMX vysielač

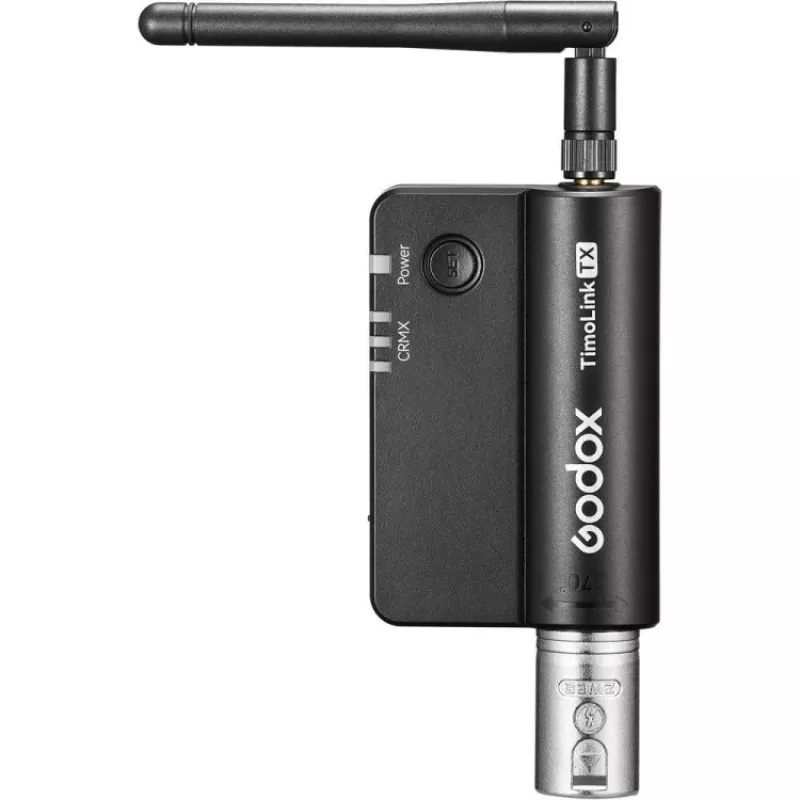

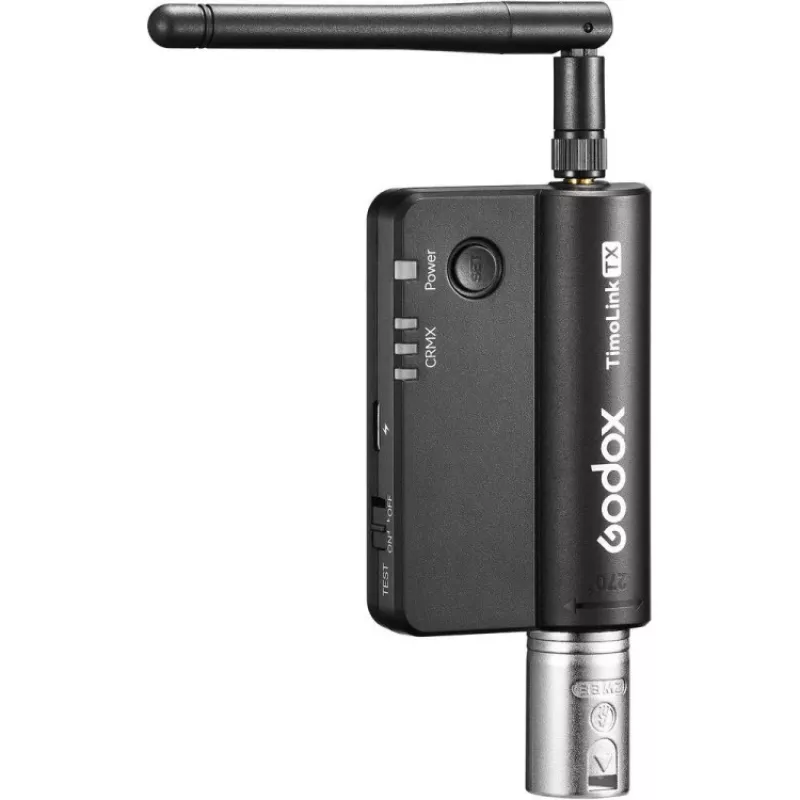

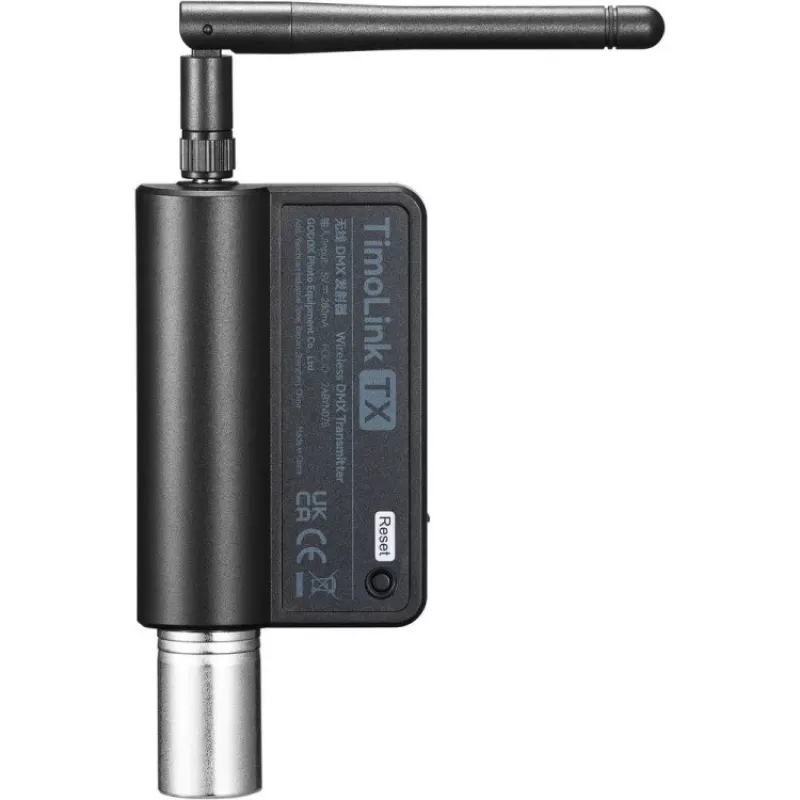

On a crowded stage or in a busy theatre, running DMX cables from the console to every fixture can be a nightmare of tangled wires and trip hazards. The Godox Timolink TX Wireless DMX Transmitter solves this by plugging directly into your lighting console's 3-pin XLR output and sending a full DMX512 universe wirelessly to a Timolink RX receiver. No software, no configuration—just plug in and control your lights from up to 300 meters away.

Key specifications

• Wireless Protocol: DMX512
• Frequency Band: 2.4 GHz ISM (2.400–2.483 GHz)
• Transmission Range: Up to 300 meters (line of sight)
• DMX Universes: 1
• Latency: < 5 ms
• Modulation Method: GFSK
• DMX Connector: 3-pin XLR Male
• Power Input: USB Type-C (5V/1A)
• Antenna Type: Integrated
• ID Groups: 16 (for multiple systems)
• Indicator Lights: LED (Power, DMX Signal, Wireless Status)
• Housing Material: Aluminum Alloy / ABS Plastic
• Operating Temperature: -20°C to 60°C
• Compatibility: Godox Timolink RX Wireless DMX Receiver
• Mounting: Direct XLR connection
• Setup: Plug and Play

Why choose it

The Timolink TX offers a reliable, low-latency wireless link that keeps your lighting rig responsive. Its rugged aluminum alloy and ABS plastic construction stands up to the demands of touring, while the integrated antenna and plug-and-play design mean you can set up in seconds—no complex configuration needed. With support for 16 ID groups, you can run multiple independent DMX systems in the same venue without interference.

Ideal use cases

• Live events and concerts where running cables is impractical or unsafe
• Theatre productions requiring quick setup and teardown
• Architectural lighting installations with remote fixtures
• Film and TV sets needing flexible lighting control
• Houses of worship and conference centers

Good to know

The Timolink TX is designed to work seamlessly with the Godox Timolink RX receiver (sold separately). It is powered via a standard USB Type-C connection, so you can use a power bank, USB adapter, or console USB port. The integrated antenna keeps the unit compact and eliminates the risk of damage during transport. Always ensure a clear line of sight between transmitter and receiver for maximum range.
