GPS prijímací modul sériový Navilock NL-8022MP

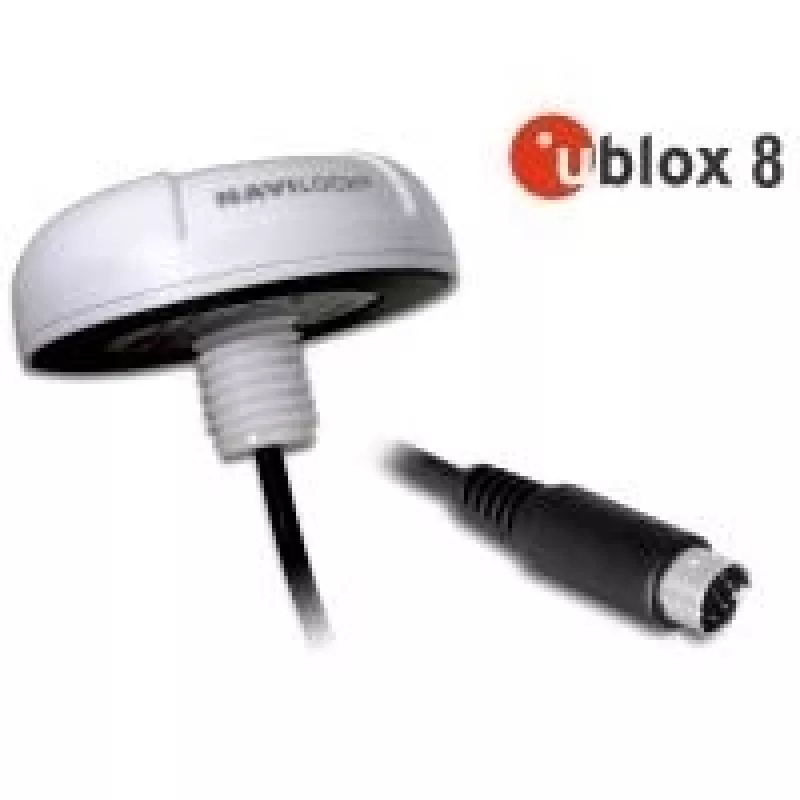

The Navilock NL-8022MP is a compact serial GPS receiver module based on the u‑blox 8 chipset with a built‑in high‑sensitivity antenna. It supports L1 navigation signals at 1575.42 MHz and is designed for installation on light-colored surfaces such as boats, campers or buses. The MD6 universal connector allows connection of optional USB or serial cables so the module can be used with a notebook and compatible routing software for navigation.

Advantages

The NL-8022MP offers high sensitivity thanks to its integrated antenna and proven u‑blox 8 positioning chipset. Its compact 62 × 62 × 21 mm housing is unobtrusive on white or light vehicle surfaces and the MD6 universal connector provides flexible connectivity options including serial and USB adapters. The module supports accurate L1 GNSS reception for standard navigation and tracking applications.

Suitable for

• Vehicle navigation on boats, campers, buses and other light-coloured roofs
• Integration into portable or embedded tracking devices
• Use with notebooks and routing software via serial or USB connection

Key specifications

• Brand: Navilock
• Model: NL-8022MP (MPN 62529, EAN 4043619625291)
• Chipset: u‑blox 8
• Supported frequency: L1 1575.42 MHz
• Dimensions: 62 mm × 62 mm × 21 mm
• Antenna: built-in high-sensitivity antenna
• Connector: MD6 universal connector (supports optional USB or serial cables)

How to use

Mount the NL-8022MP on a suitable light-coloured surface for optimal concealment and signal performance. Connect the module to a computer or routing device using an appropriate cable attached to the MD6 universal connector (serial or USB adapter as required). Configure your navigation or tracking software to the serial port settings provided by the module and verify GNSS signal reception before starting navigation or logging.

Recommendations

Install the receiver on a horizontal, unobstructed surface away from large metal objects and RF noise sources. Use the manufacturer-recommended cable/adaptor for reliable data connection and keep firmware and navigation software up to date for best performance.
