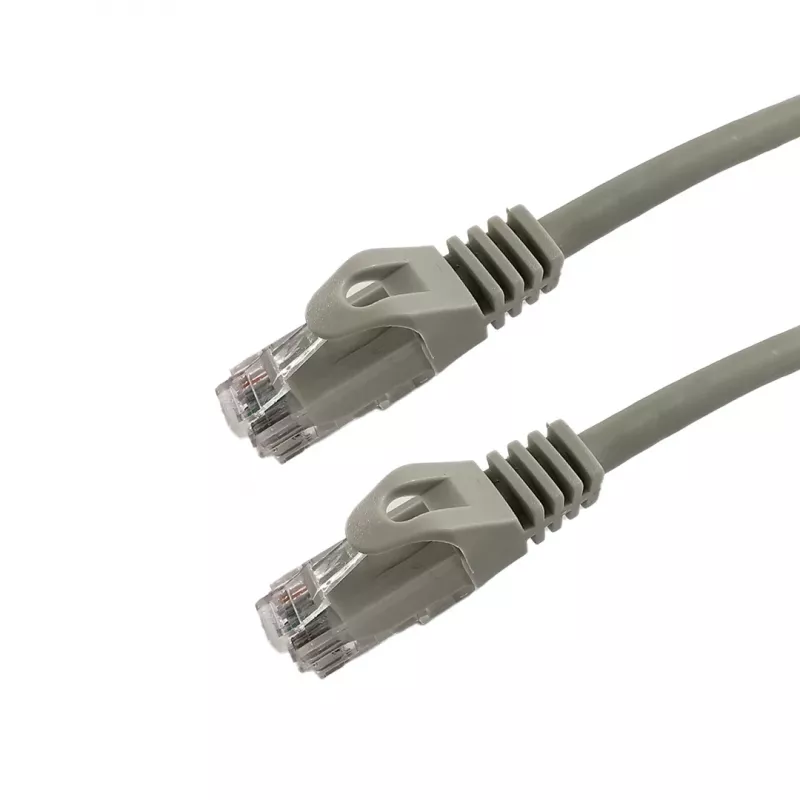

Grafenthal CAT6A S/FTP LSZH Ethernet Patchkabel 3,0m sivý

The Grafenthal CAT6A S/FTP LSZH Ethernet Patch Cable is a high-performance network cable designed for reliable, high-speed data transmission in professional environments. With a length of 3.0 meters and a sleek grey jacket, this cable supports 10 Gigabit Ethernet (10GBASE-T) and operates at up to 500 MHz bandwidth, making it ideal for demanding applications such as data centers, server rooms, and enterprise networks.

Advantages

This cable features S/FTP shielding (screened and foiled twisted pair) to provide excellent protection against electromagnetic interference (EMI) and crosstalk, ensuring stable and error-free data transmission. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic smoke and corrosive gases in case of fire, making it suitable for use in public and enclosed spaces. Gold-plated RJ45 connectors ensure optimal conductivity and corrosion resistance.

Suitable for

• High-speed Ethernet networks requiring 10 Gbps performance
• Data centers and server rooms
• Enterprise and industrial networking
• PoE (Power over Ethernet) applications
• Installations where fire safety is a priority (LSZH jacket)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 3.0 meters
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG (Stranded)
• Number of Conductors: 8 (4 twisted pairs)
• Individual Pair Shielding: Aluminum Foil (PIMF)
• Overall Shielding: Tinned Copper Braid
• Fire Rating: LSZH
• Compliance: RoHS, CE
• Connector Plating: Gold-plated contacts

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is also suitable for PoE applications up to 100W (PoE++).
