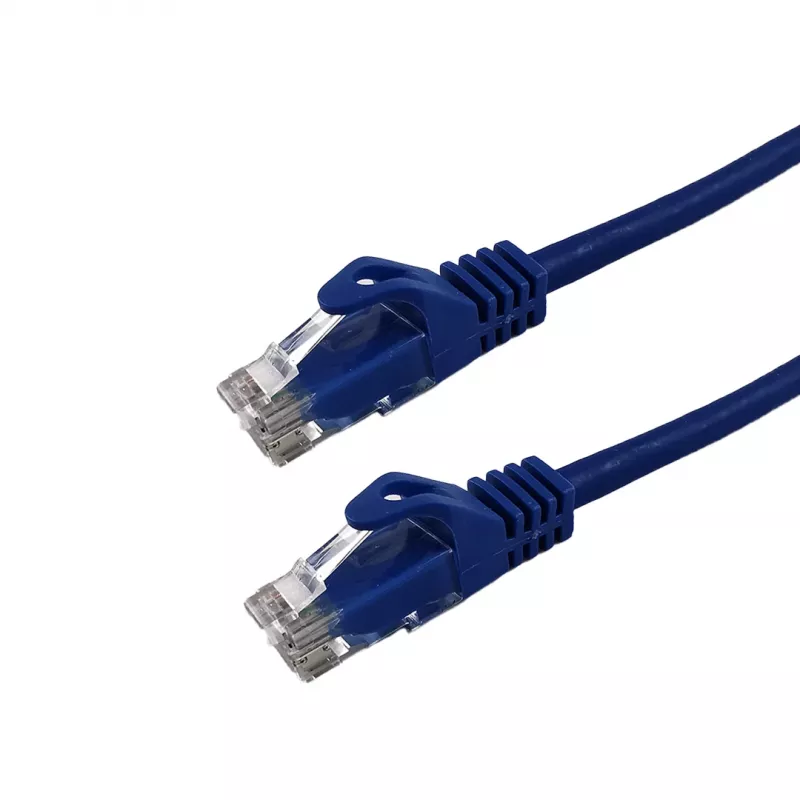

Grafenthal Patch kábel CAT6 S/FTP CU LSZH 1,50 m modrý

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 1.50m Blue is a high-performance network cable designed for reliable data transmission in professional environments. With its S/FTP shielding and copper conductors, it ensures minimal interference and optimal signal integrity for demanding applications.

Advantages

This cable offers superior protection against electromagnetic interference (EMI) and crosstalk, thanks to its S/FTP (Screened/Foiled Twisted Pair) construction. The LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire. Gold-plated connectors provide corrosion resistance and reliable connectivity.

Suitable for

• Data centers and server rooms
• Enterprise network installations
• High-speed Ethernet connections (up to 10GBASE-T)
• PoE and PoE+ applications
• Any environment requiring low smoke and halogen-free cabling

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: S/FTP
• Conductor Material: Copper (CU)
• Jacket Material: LSZH
• Length: 1.5 meters
• Color: Blue
• Connector: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 26 AWG (Stranded)
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE, IEC 60332-1

Recommendations

For optimal performance, ensure that the cable is not bent beyond its minimum bend radius and avoid running it near high-voltage power lines. This cable is ideal for structured cabling systems requiring reliable high-speed data transmission.
