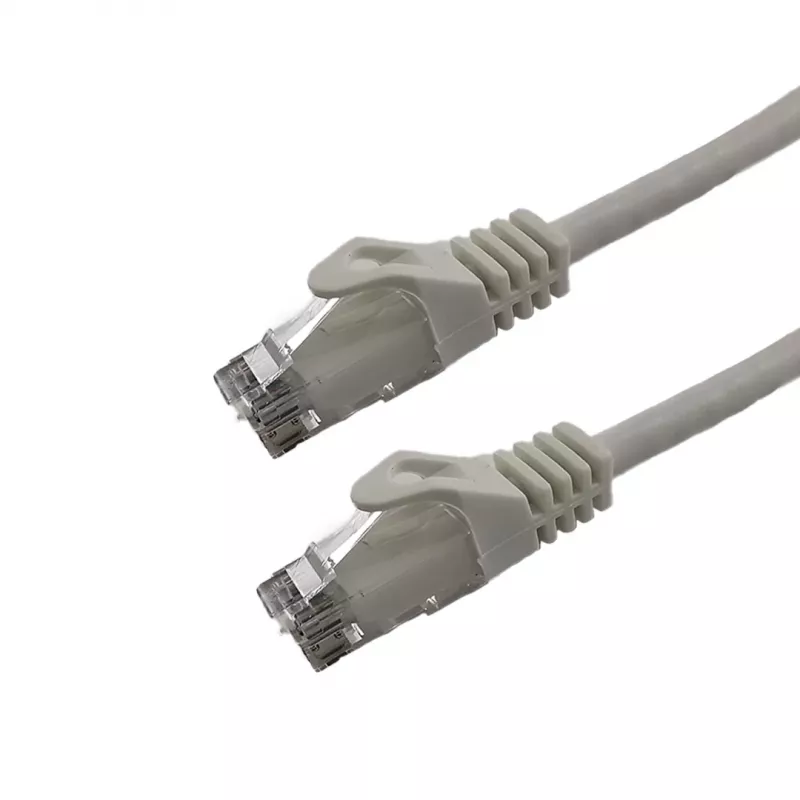

Grafenthal patch kábel CAT6 S/FTP CU LSZH 7,50 m biely

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 7.50m White is a high-performance Ethernet patch cable designed for reliable network connections. Manufactured with pure copper conductors and S/FTP shielding, this cable ensures excellent signal integrity and protection against electromagnetic interference. The LSZH jacket makes it safe for use in enclosed spaces, reducing toxic smoke emission in case of fire. Ideal for data centers, server rooms, and professional network installations.

Advantages

This cable offers superior data transmission speeds up to 10 Gigabit Ethernet, making it suitable for bandwidth-intensive applications. The S/FTP shielding (overall braid and foil per pair) provides robust protection against crosstalk and external noise. The 26 AWG stranded construction allows for flexibility and easy routing in tight spaces. Gold-plated contacts ensure corrosion resistance and reliable connectivity.

Suitable for

• LAN networks in offices and data centers
• Connecting computers, switches, routers, and patch panels
• 10GBASE-T applications requiring high bandwidth
• Environments where low smoke and halogen-free materials are required

Key specifications

• Category: CAT6
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 7.5 meters
• Color: White
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts (50µm)
• Cable Construction: Stranded
• AWG: 26 AWG
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Wiring Standard: TIA/EIA-568B
• Number of Pairs: 4 Twisted Pairs
• Compliance: RoHS, CE, TIA/EIA-568-C.2
• Operating Temperature: -20°C to 60°C
• Storage Temperature: -20°C to 75°C
• Flame Retardancy: IEC 60332-1

Recommendations

For optimal performance, use with CAT6 compatible devices and avoid sharp bends. This cable is suitable for permanent installations where fire safety is a concern.
