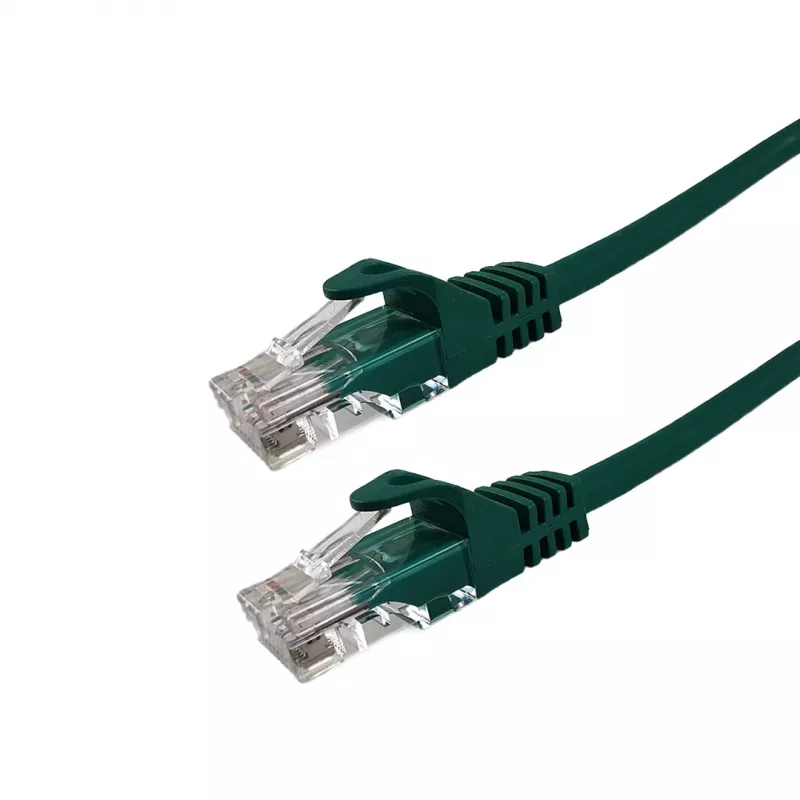

Grafenthal patch kábel CAT6A S/FTP CU LSZH 0,15 m zelený

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.15m Green is a high-performance Ethernet cable designed for reliable network connections in data centers, server rooms, and professional environments. With Category 6A certification, it supports 10 Gigabit Ethernet (10GBASE-T) and operates at bandwidths up to 500 MHz, ensuring fast and stable data transmission. The S/FTP shielding (screened and foiled twisted pairs) provides excellent protection against electromagnetic interference (EMI) and crosstalk, making it ideal for high-density installations. The cable features stranded copper conductors (AWG 26/7) for flexibility and durability, and a low smoke zero halogen (LSZH) jacket that minimizes toxic fumes and smoke in case of fire, enhancing safety in enclosed spaces. Terminated with RJ45 male connectors on both ends and wired to T568B standard, this patch cable is ready for immediate use. Its compact 0.15-meter length is perfect for short connections between patch panels and switches, helping to reduce cable clutter.

Advantages

This patch cable offers several key benefits: it supports high-speed data transfer up to 10 Gbps, making it future-proof for demanding applications. The S/FTP shielding ensures signal integrity even in electrically noisy environments. The LSZH jacket complies with strict fire safety regulations, making it suitable for use in public buildings, schools, and hospitals. The stranded conductor design provides flexibility and resistance to breakage from frequent bending. Additionally, the cable is halogen-free and low smoke, contributing to a safer workplace.

Suitable for

• Connecting network devices in data centers and server rooms
• Patch panel to switch connections in structured cabling systems
• High-speed Ethernet networks requiring 10GBASE-T performance
• Environments where fire safety and low smoke emission are critical
• Short-distance cable management to reduce clutter

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6A)
• Shielding Type: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 0.15 m (15 cm)
• Color: Green
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: AWG 26/7 Stranded
• Wiring Standard: T568B
• Application: Network, Ethernet
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Flame Retardancy: IEC 60332-1-2
• Halogen Free: Yes
• Low Smoke: Yes
• Operating Temperature: -20°C to 60°C
• Mating Cycles: ≥ 750

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid sharp bends that could affect signal quality. This cable is ideal for short patch connections where space is limited and high reliability is required.
