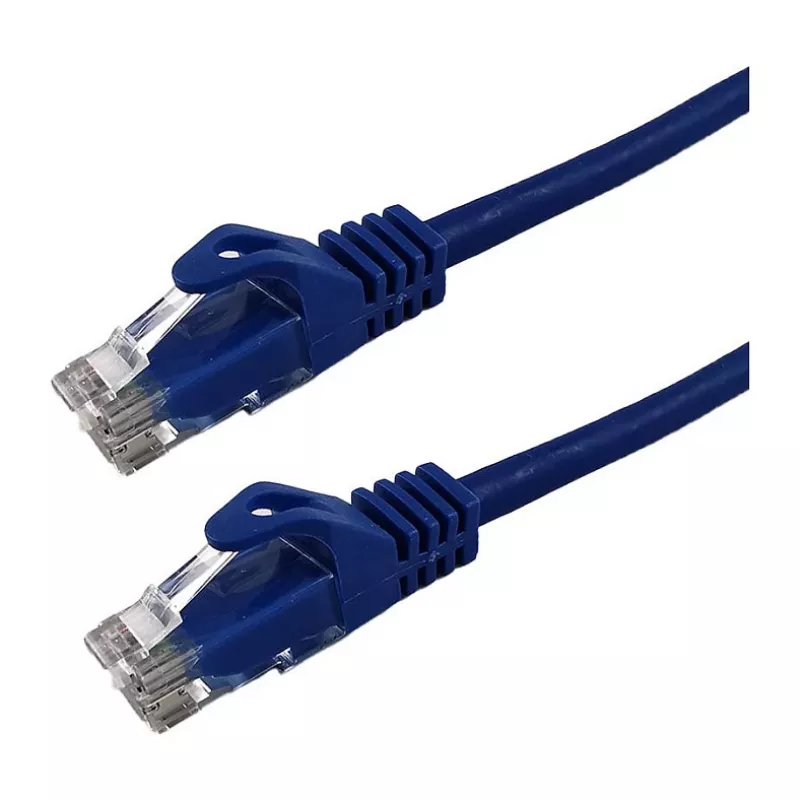

Grafenthal patch kábel Cat6a U/UTP CU LSZH 0,25m modrý

The Grafenthal Patch Cable Cat6a U/UTP CU LSZH 0.25m Blue is a high-performance Ethernet cable designed for reliable, high-speed data transmission in professional network environments. Manufactured with 100% copper conductors and a low smoke zero halogen (LSZH) jacket, this cable ensures both excellent signal integrity and enhanced safety in case of fire. With a length of 0.25 meters, it is ideal for short connections between patch panels, switches, and network devices in server rooms or data centers.

Advantages

This Cat6a patch cable supports data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, making it suitable for demanding applications such as 10GBASE-T networks. The U/UTP (unshielded twisted pair) design reduces crosstalk and interference, while the gold-plated RJ45 connectors ensure a secure and corrosion-resistant connection. The LSZH jacket minimizes toxic smoke and halogen emissions, contributing to a safer working environment.

Suitable for

• Data networking in server rooms, data centers, and LAN environments
• Connecting patch panels, switches, routers, and end devices
• Power over Ethernet (PoE) applications
• High-speed data transmission requiring Cat6a performance

Key specifications

• Cable Category: Cat6a (Category 6a)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Length: 0.25 meters
• Cable Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50 micron)
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 28 AWG
• Cable Construction: Stranded Copper
• Wiring Standard: TIA/EIA-568-C.2
• Fire Safety Standard: IEC 60332-1 (LSZH compliant)
• Operating Temperature: -20°C to 60°C
• Certifications: RoHS, CE
• Compatibility: Backward compatible with Cat6, Cat5e, Cat5

Recommendations

For optimal performance, use this cable in structured cabling systems where short, high-quality patch cords are required. Ensure that all connected devices support Cat6a standards to fully utilize the 10 Gbps capability. The LSZH jacket is particularly recommended for enclosed spaces or areas with strict fire safety regulations.
