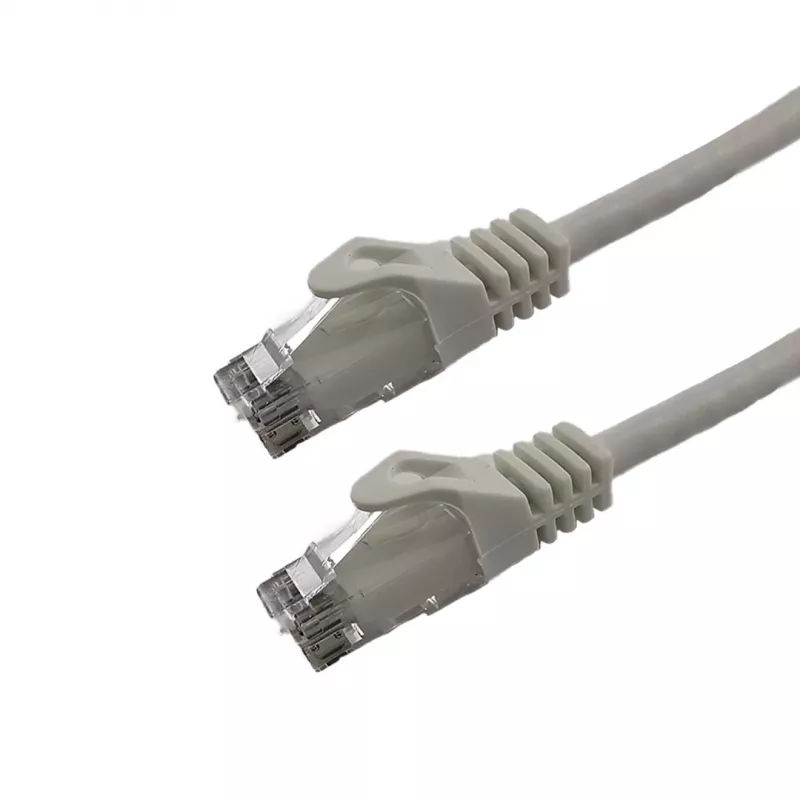

Grafenthal Patchkabel CAT6 F/UTP CU LSZH 0,25m biela

The Grafenthal Patch Cable CAT6 F/UTP CU LSZH 0.25m White is a high-performance network cable designed for reliable data transmission in LAN and data center environments. Manufactured with 100% copper conductors and F/UTP shielding, it ensures minimal crosstalk and interference, supporting Gigabit Ethernet speeds up to 1 Gbps. The LSZH jacket makes it safe for use in confined spaces, emitting low smoke and zero halogen in case of fire.

Advantages

This patch cable offers excellent signal integrity and durability. The gold-plated RJ45 connectors provide corrosion-resistant contact, while the stranded conductor construction allows for flexibility and easy installation. Its compact 0.25m length is ideal for short-distance connections between patch panels and switches, reducing cable clutter.

Suitable for

• Connecting network devices in server rooms and data centers
• Short patch connections between switches, routers, and patch panels
• Home and office LAN setups requiring reliable Gigabit Ethernet

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6
• Shielding: F/UTP (Overall Foil Shielded, Unshielded Twisted Pairs)
• Conductor Material: 100% Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Colour: White
• Connectors: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Data Transfer Rate: Up to 1 Gbps
• Bandwidth: Up to 250 MHz
• Construction: Stranded
• Number of Pairs: 4
• Outer Diameter: Approx. 5.5 mm
• Compliance: RoHS, CE
• Operating Temperature: -20°C to 60°C
• Contact Plating: Gold-plated

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid bending beyond the recommended radius.
