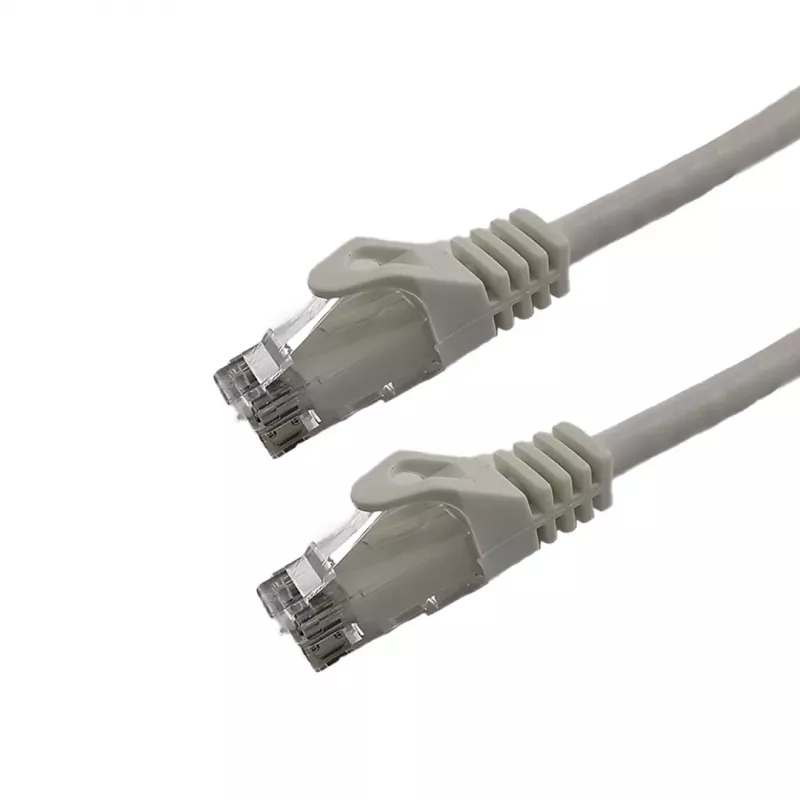

Grafenthal Patchkabel CAT6 F/UTP CU PVC 0,25m biela

The Grafenthal Patch Cable CAT6 F/UTP CU PVC 0.25m White is a high-performance Ethernet cable designed for reliable network connectivity in data centers, server rooms, and home networks. Manufactured with pure copper conductors and F/UTP shielding, this cable ensures minimal crosstalk and interference, supporting data transfer rates up to 10 Gbps over short distances. The 0.25-meter length is ideal for patch panel to switch connections or other close-proximity applications.

Advantages

This patch cable offers exceptional signal integrity and durability. The gold-plated RJ45 connectors provide corrosion-resistant contact points, while the stranded conductor construction enhances flexibility for easy routing. The PVC jacket protects against physical wear and is suitable for indoor use. Compliance with RoHS and CE standards ensures environmental and safety compliance.

Suitable for

• Connecting network devices in close proximity (e.g., patch panel to switch)
• Data centers and server rooms requiring high-speed, reliable connections
• Home and office Ethernet networks
• 10GBASE-T applications over short cable runs

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: F/UTP (Overall Foil Shielded, Unshielded Twisted Pairs)
• Conductor Material: Pure Copper (CU)
• Jacket Material: PVC
• Length: 0.25 m (25 cm)
• Color: White
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Gauge: 26 AWG
• Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Impedance: 100 Ohm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6-compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is not recommended for outdoor or direct burial applications.
