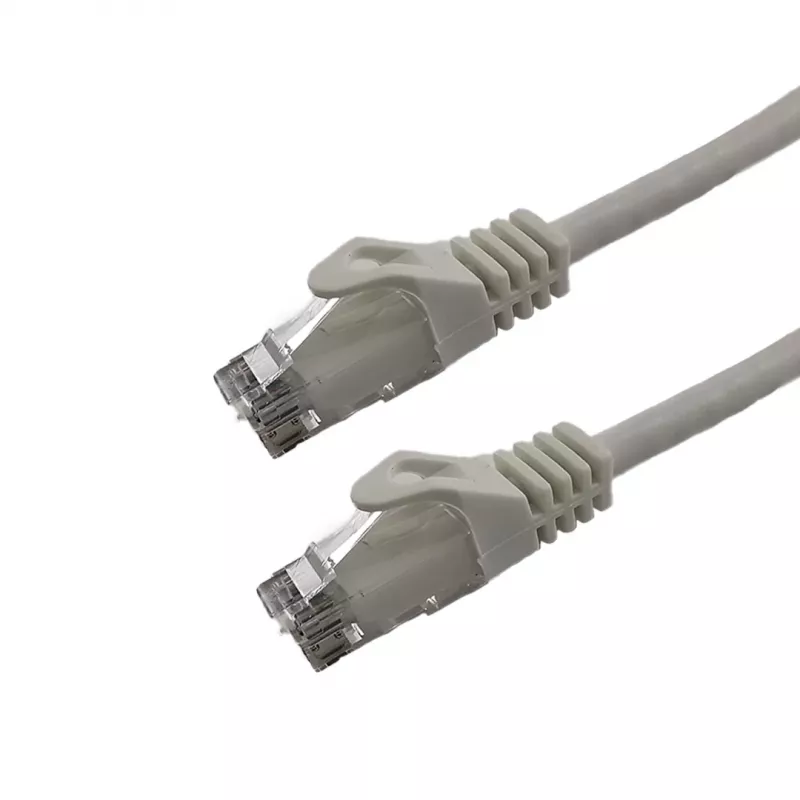

Grafenthal Patchkabel CAT6A S/FTP CU LSZH 3,00M biely

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 3.00M White is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Constructed with pure copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers, server rooms, and demanding home networks.

Advantages

This cable offers superior signal integrity and data transfer rates up to 10 Gbps over a bandwidth of 500 MHz. The LSZH jacket provides enhanced fire safety, emitting low smoke and zero halogen in case of fire, making it suitable for public and commercial environments. Gold-plated contacts ensure corrosion resistance and long-lasting connectivity.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Home networks requiring high-speed connections
• 10GBASE-T applications
• PoE and PoE+ devices

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A
• Shielding: S/FTP
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH
• Length: 3.0 meters
• Color: White
• Connector: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Gauge: 26 AWG
• Wiring Standard: T568B
• Compliance: RoHS, CE, ISO/IEC 11801, TIA/EIA-568-C.2
• Fire Safety: IEC 60332-1, IEC 61034-2, IEC 60754-2

Recommendations

For optimal performance, use with CAT6A compatible network equipment and avoid sharp bends or kinks during installation. This cable supports PoE and PoE+ applications, making it versatile for powering devices such as IP cameras and wireless access points.
