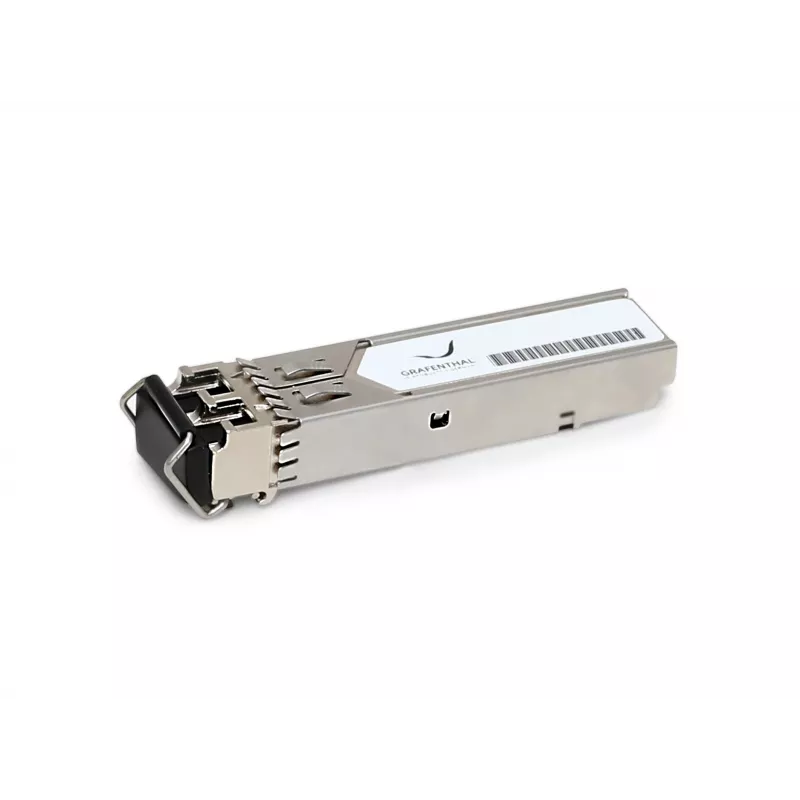

Grafenthal TRANSCEIVER X130 10G SFP+ LC LR 10KM 1310NM SMF

The Grafenthal TRANSCEIVER X130 is a high-performance 10 Gigabit Ethernet SFP+ transceiver designed for long-reach single-mode fiber applications. It delivers reliable connectivity over distances up to 10 km, making it ideal for enterprise networks, data centers, and telecommunications infrastructure. This hot-pluggable module complies with IEEE 802.3ae 10GBASE-LR standards and is comparable to HP JD094B.

Advantages

Cost-effective alternative to OEM transceivers with full compatibility and performance. Supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (<1W) helps reduce energy costs. Hot-swappable design simplifies installation and maintenance without network downtime.

Suitable for

• 10 Gigabit Ethernet connections in data centers
• Enterprise network backbone links
• Telecommunications and service provider networks
• Fiber Channel storage area networks

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps (10.3125 Gbps)
• Wavelength: 1310 nm
• Max Distance: 10 km over Single-Mode Fiber (SMF)
• Connector: LC Duplex
• Reach Type: LR (Long Reach)
• DDM/DOM Support: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: <1W Typical
• Laser Type: DFB
• Receiver Sensitivity: -14.4 dBm Typical
• Transmitter Output Power: -8.2 dBm to 0.5 dBm
• Voltage Supply: 3.3V
• Standard Compliance: IEEE 802.3ae 10GBASE-LR

Recommendations

For optimal performance, use with high-quality single-mode fiber patch cables and ensure proper cleaning of fiber connectors. This transceiver is compatible with a wide range of networking equipment supporting SFP+ slots. Verify compatibility with your specific hardware before installation.
