Wallbox Green Cell GC EVGC021B2275 3,6-22 kW 7,5 m NFC sivá hliník

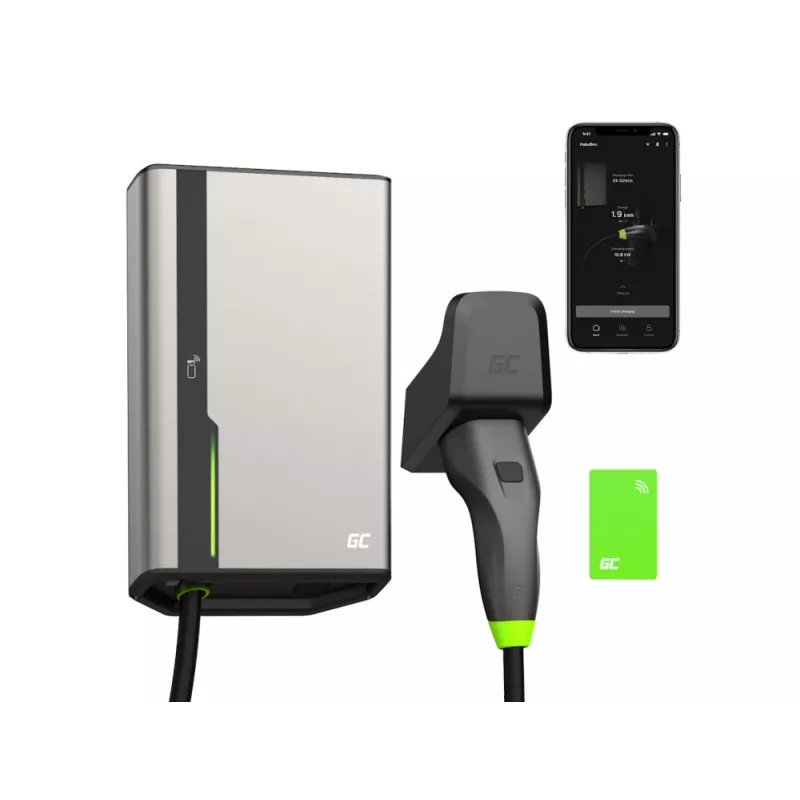

The Green Cell GC EVGC021B2275 Wallbox is a wall-mounted electric vehicle charger with an aluminium housing and an integrated 7.5 m charging cable. It supports adjustable charging power from 3.6 kW up to 22 kW and can operate on both single-phase and three-phase electrical systems. The unit features NFC functionality for user authentication and an IP54 ingress protection rating for resistance to dust and splash water, making it suitable for indoor and sheltered outdoor installations.

Advantages

The aluminium enclosure provides mechanical strength and improved heat dissipation compared with plastic housings, while the IP54 rating ensures reliable operation in environments with dust and occasional water exposure. A long 7.5 m cable increases installation flexibility, allowing easier access to vehicle charging ports without repositioning the vehicle. Support for both single-phase and three-phase supply enables compatibility with a wide range of residential and commercial electrical installations. NFC access control adds a layer of user management for shared or public charging locations.

Suitable for

• Home garages and private parking spaces
• Small commercial parking areas and offices
• Multi-unit residential buildings with wall-mounted chargers
• Workplaces requiring user-authenticated charging

Key specifications

• Charging power: adjustable from 3.6 kW to 22 kW
• Supply compatibility: single-phase and three-phase operation
• Cable length: 7.5 m
• Case material: aluminium
• Ingress protection: IP54
• Access control: NFC authentication
• Mounting: wall-mounted

How to use

Install the wallbox on a suitable vertical surface following local electrical codes and using a certified electrician for connection to the building electrical supply. Configure the supply type (single-phase or three-phase) and set the maximum charging power according to the vehicle and circuit capacity. Use NFC authentication if enabled to control user access. Connect the vehicle charging inlet with the integrated 7.5 m cable and start charging using the vehicle’s charging controls or the wallbox interface. Regularly inspect the charging cable and enclosure for damage and ensure ventilation around the unit for heat dissipation.

Ieteikumi par lietošanu

Place the unit in a sheltered location if installed outdoors, avoid direct exposure to heavy rain, and follow manufacturer and local safety guidelines for electrical installations.
