Grommet montážna základňa Ergotron DS100 čierna

The ERGOTRON Grommet Mount Base DS100 in black provides a secure, low-profile method to attach DS100 monitor stands through a worksurface grommet hole. Designed for durability, the base converts a freestanding stand to a grommet-mounted configuration, conserving desk space while maintaining stable support for single and multi-monitor setups when used according to thickness and hole-size limits. The package includes additional cable-management ties and straps to help route monitor cables neatly beneath the desk.

Advantages

The grommet mount base is constructed from sturdy steel to ensure rock-solid hold and long-term reliability. By mounting through the worksurface instead of resting on a platform, it frees desktop area and provides a tidier workspace. Installation is straightforward for compatible worksurfaces and delivers stable positioning for tasks that require consistent monitor placement. Additional cable-management accessories are included to simplify cable routing and reduce clutter.

Suitable for

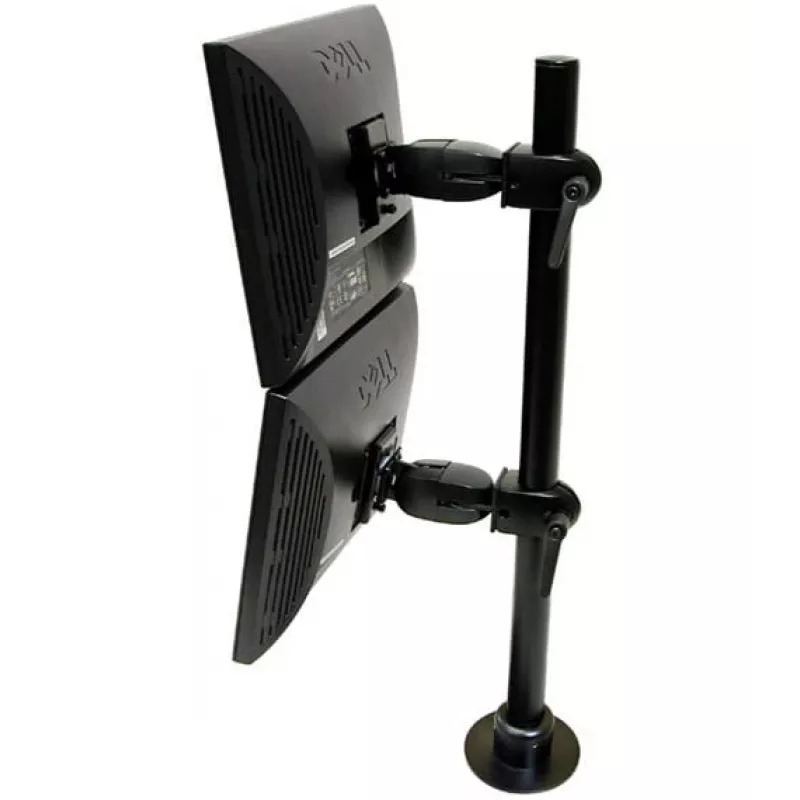

• Users who need to convert a DS100 monitor arm from freestanding to grommet-mounted
• Workstations where conserving desktop surface is important
• Office, home office, or shared environments requiring stable monitor support
• Setups with worksurface holes between 10 mm and 76 mm wide and up to 82 mm thick

Key specifications

• Mount type: Grommet-through worksurface mount for DS100 series
• Material: Sturdy steel construction for enhanced stability
• Compatible worksurface hole width: 10 mm to 76 mm (3/8" to 3")
• Maximum worksurface thickness supported: 82 mm (3-1/4")

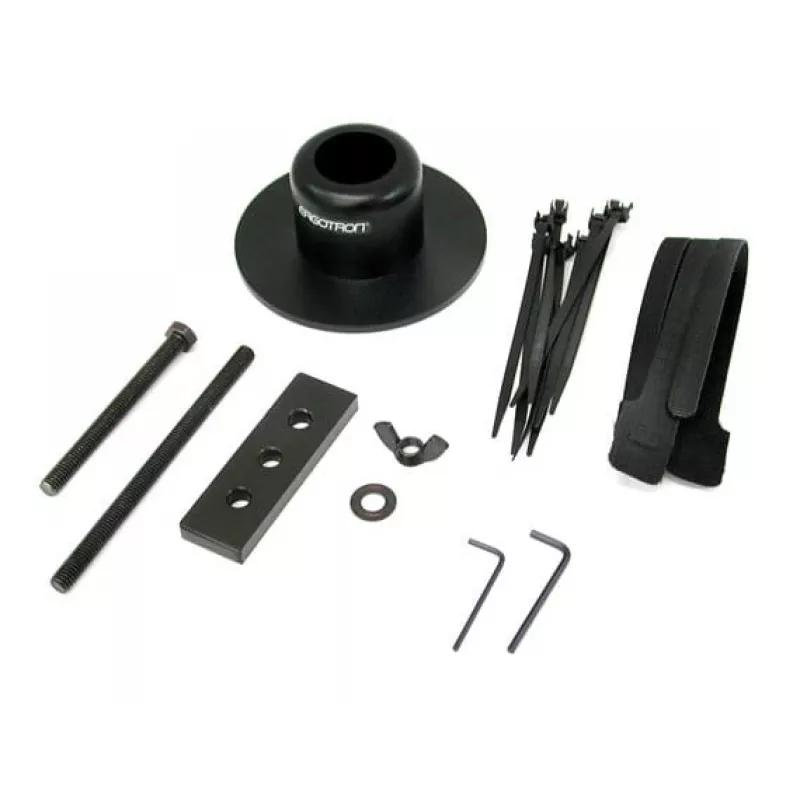

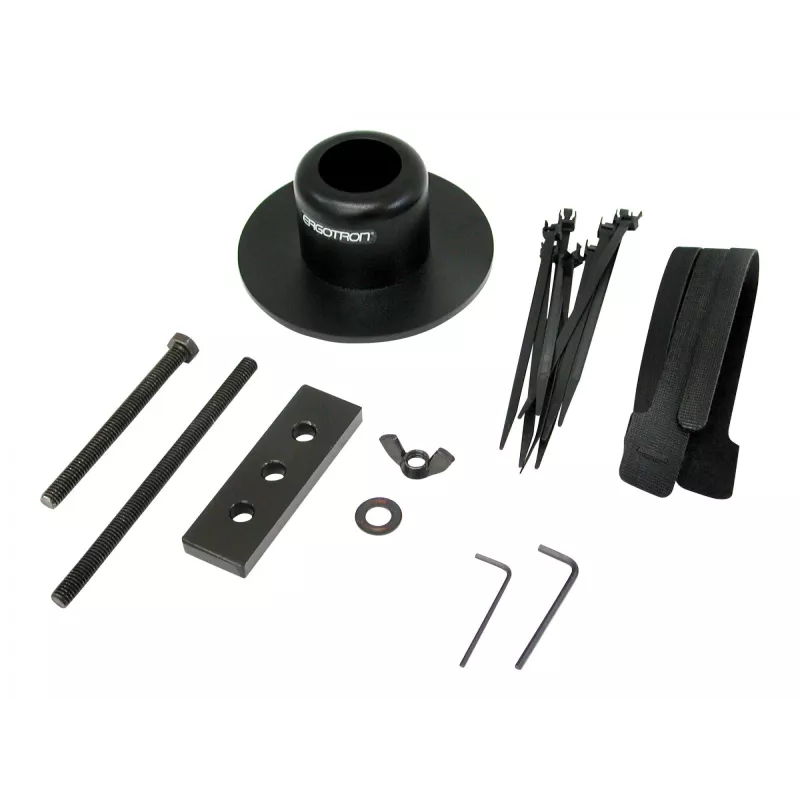

• Includes: Extra cable-management ties and straps

How to use

Prepare the worksurface by verifying the grommet hole width and thickness fall within the supported range. Center the base over the hole and insert the mounting screw through the worksurface per the DS100 installation instructions, ensuring the screw is positioned centrally for maximum support. Tighten securely to achieve a rock-solid attachment. Route monitor and power cables using the included ties and straps to maintain a clean underside of the desk and reduce strain on connectors.

Recommendations

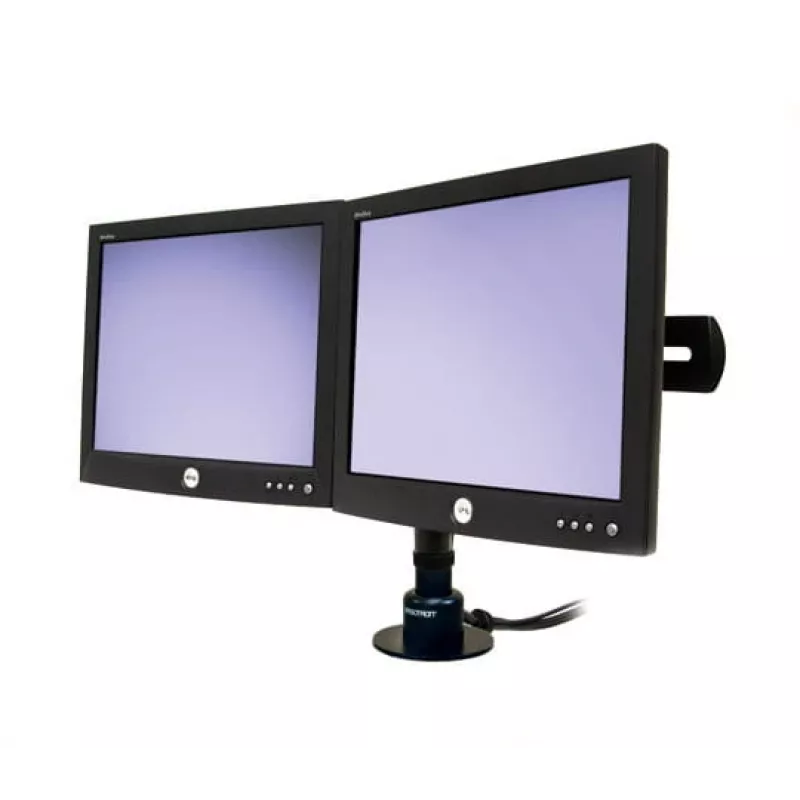

For multi-monitor configurations such as the DS100 Quad-Monitor Horizontal stand, use two grommet mount bases where indicated to ensure full support. Always confirm the worksurface material and thickness can support the mounted load and follow torque guidance in the DS100 installation documentation when tightening the mounting screw.
