Guil TM-AST/1 - sada rukovätí na transport a skladovanie pódiových dielov 2

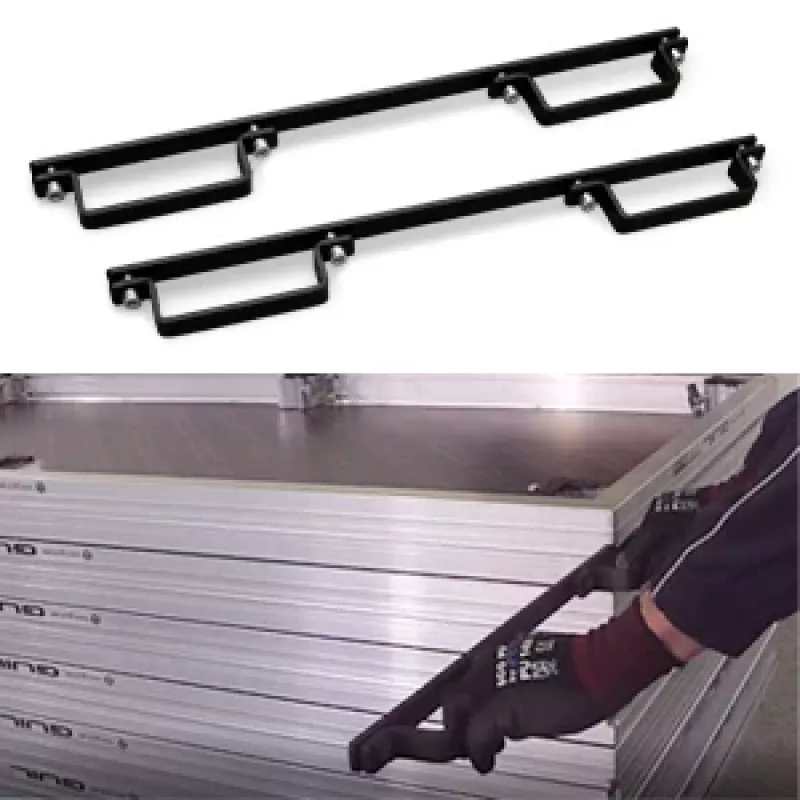

Moving heavy stage platforms and risers between storage, truck, and venue often means awkward lifting, scratched edges, and wasted time. The GUIL TM-AST/1 carrying handle set changes that with a pair of bolt-on steel grips that give crews a secure, comfortable hold on modular stage elements. Each handle supports up to 75 kg, so two people can safely carry a full platform without bending or straining. The black powder-coated finish resists corrosion and blends into most stage hardware, while the non-slip ergonomic shape keeps hands comfortable during repeated trips.

Highlights

• Set of two heavy-duty steel handles for transport and storage of stage platforms, risers, and modular elements
• Static load capacity of 75 kg per handle, suitable for professional event and stage production
• Ergonomic, non-slip grip design reduces hand fatigue and improves control
• Black powder-coated finish provides corrosion resistance and a discreet appearance
• Universal bolt-on mounting with 8 mm holes and 140 mm center-to-center spacing
• Compact profile: each handle measures approximately 180 mm long, 60 mm wide, and protrudes 35 mm from the surface

In daily use

Installation is straightforward: mark the two mounting holes on the stage element, drill if needed, and secure each handle with M8 bolts (not included). Once fitted, the handles become a permanent, low-profile lifting point that does not interfere with stacking or transport. Crews can lift and carry platforms with a natural upright posture, reducing the risk of back injuries and accidental drops. The smooth, rounded grip area works well with gloved hands and provides a reliable hold even when platforms are wet or dusty. When not in use, the handles remain attached, ready for the next load-in or load-out.

Full specifications

• Product type: Carrying handle set
• Application: Transport and storage of stage platforms, risers, and modular stage elements
• Material: High-strength steel
• Finish: Black powder-coated
• Number of handles: 2 per set
• Mounting type: Bolt-on (requires drilling or existing mounting points)
• Grip type: Ergonomic, non-slip design
• Load capacity (per handle): Up to 75 kg (static load)
• Corrosion resistance: Yes, due to powder coating
• Compatibility: Universal for stage elements with suitable mounting surfaces
• Dimensions (per handle): Approx. 180 mm (L) x 60 mm (W) x 35 mm (H protrusion)
• Mounting hole diameter: 8 mm (suitable for M8 bolts)
• Mounting hole spacing: Approx. 140 mm (center-to-center)
• Included hardware: No (mounting bolts/nuts sold separately)
• Installation: Requires secure bolting to stage elements
• Durability: Designed for heavy-duty professional use in event and stage production
• Origin: Spain

Final note

For stage crews who move platforms every day, the GUIL TM-AST/1 handle set is a small upgrade that pays off in speed, safety, and long-term equipment protection. The handles are built to withstand the demands of touring and rental operations, and their universal design means they can be fitted to most wooden or metal stage decks. Keep a spare set in the toolbox for quick retrofits or replacements.
