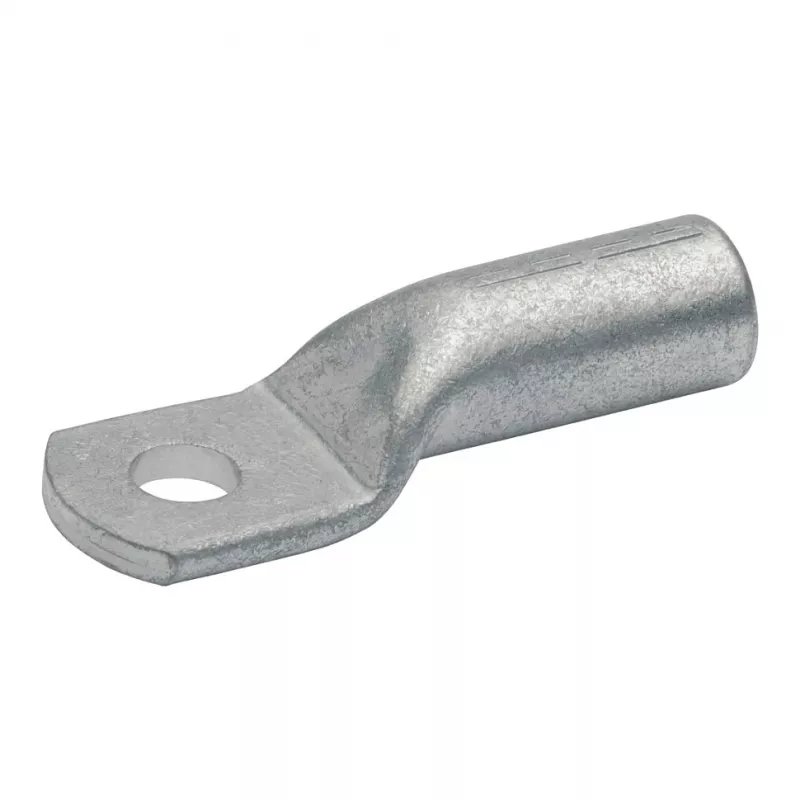

GUSTAV KLAUKE GMBH KLAU lisovací káblový ok 104R10 25mm² M10 DIN 46235

For reliable, high-conductivity terminations in power distribution and control panels, the KLAU 104R10 compression cable lug stands apart from generic lugs through its seamless copper tube construction and precise DIN 46235 compliance. This 25 mm² lug with M10 bolt hole is built to maintain a stable, low-resistance connection even under demanding electrical loads.

Highlights

• DIN 46235 standard for consistent dimensions and performance
• Seamless electrolytic copper tube for uniform crimping and high conductivity
• Tin-plated surface for excellent corrosion resistance and solderability
• M10 bolt hole (10.5 mm diameter) for secure fastening
• Uninsulated design for professional crimp applications
• RoHS compliant and suitable for voltages up to 1000 V

In daily use

Electricians and panel builders appreciate the 104R10 for its ease of crimping and dependable mechanical strength. The annealed copper barrel deforms evenly around the conductor, creating a gas-tight connection that resists vibration and thermal cycling. The tin plating not only protects against oxidation but also ensures a clean, professional appearance in finished assemblies.

Full specifications

• Product type: Compression cable lug
• Standard: DIN 46235
• Conductor material: Copper
• Conductor cross-section: 25 mm²
• Bolt hole size: M10 (10.5 mm diameter)
• Lug material: Electrolytic copper (E-Cu)
• Surface treatment: Tin-plated
• Connection method: Crimp / Compression
• Insulation: Uninsulated
• Operating temperature range: -55°C to +150°C
• Voltage rating: Up to 1000 V
• Manufacturing process: Seamless tube
• Shape: Ring terminal
• Number of bolt holes: 1
• Colour: Metallic (tin)
• RoHS compliant: Yes

Final note

Choose the KLAU 104R10 when you need a termination that meets strict German engineering standards and delivers long-term reliability in industrial environments.
