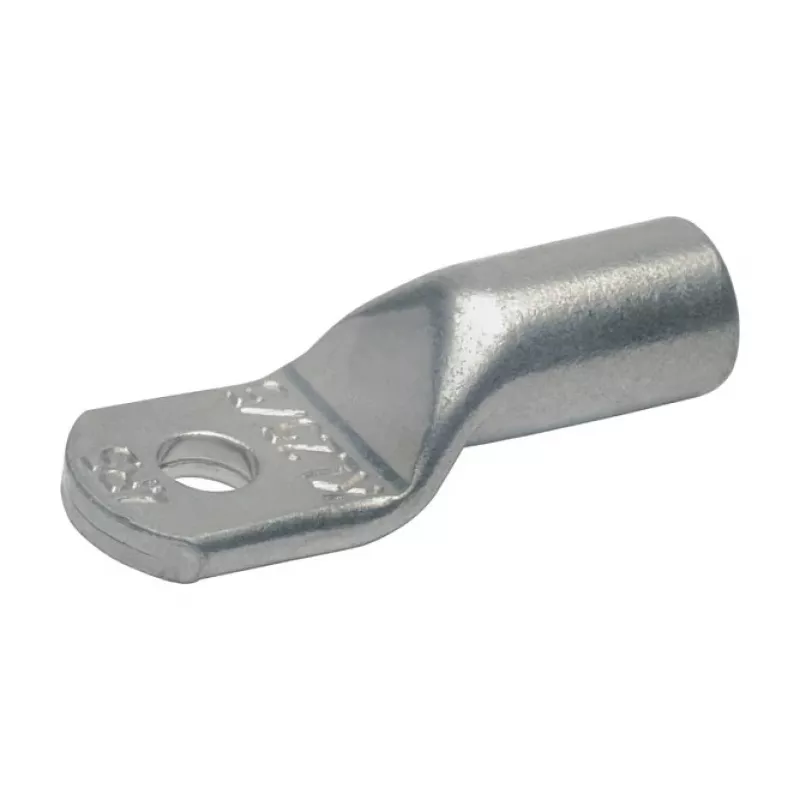

GUSTAV KLAUKE GMBH KLAU medený káblový ok 9R10 120 mm² M10

Heavy copper cables demand terminations that won't loosen, corrode, or overheat under load. The KLAUKE 9R10 crimp cable lug solves this with a solid electrolytic copper body, a precise M10 ring lug profile, and a DIN 46235-compliant crimp zone that forms a cold-welded, gas-tight connection. No solder, no screws—just a permanent, low-resistance joint that stays secure for decades.

Who is it for

Electrical contractors, panel builders, and maintenance engineers working on power distribution, switchgear, and industrial control systems. If you terminate 120 mm² copper conductors and need a reliable, code-compliant connection, this lug is built for your toolbox.

Main features

• Electrolytic copper (E-Cu) for maximum conductivity and corrosion resistance
• Ring lug design with 10.5 mm bolt hole fits M10 fasteners
• Suitable for 120 mm² stranded and fine-stranded copper conductors
• Straight (180°) connection angle saves space in tight enclosures
• Inspection hole allows quick visual verification of proper crimp depth
• Compliant with DIN 46235 for repeatable, high-quality crimps
• Halogen-free and RoHS compliant—safe for modern electrical installations

Specifications

• Brand: GUSTAV KLAUKE GMBH
• Model: 9R10
• Material: Electrolytic copper (E-Cu)
• Conductor cross-section: 120 mm²
• Bolt size: M10 (hole diameter 10.5 mm)
• Lug type: Ring lug
• Connection: Crimp
• Standard: DIN 46235
• Surface finish: Bare copper
• Max. operating temperature: +120 °C
• Voltage rating: Up to 1000 V AC/DC
• Application: Power distribution, industrial wiring, switchgear

Tips

Always use a calibrated crimping tool with the correct die set for 120 mm² lugs. After crimping, check the inspection hole—if the conductor is visible through it, the crimp is complete. For fine-stranded conductors, use a ferrule to prevent strand breakage.
