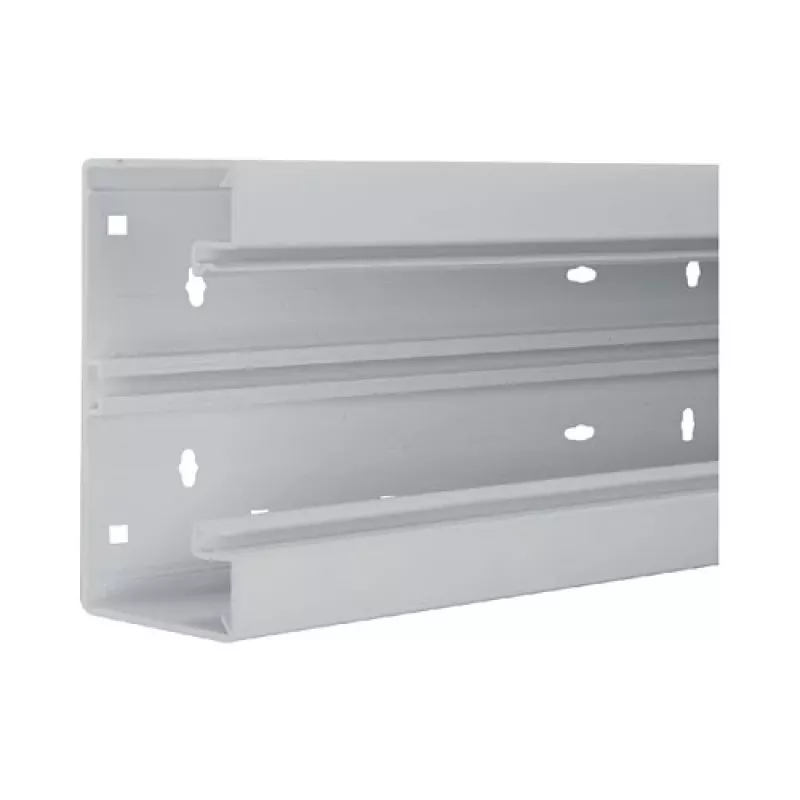

Hager BR6513017035 spodný diel parapetného kanála, PVC, svetlosivá, 65x130 mm, 2000 mm

Routing cables along walls in offices and commercial spaces often means choosing between unsightly exposed wiring and expensive recessed installations. Hager's BR series dado trunking solves this by providing a clean, surface-mounted channel that keeps cables organized and accessible. This base part is the foundation of the system, ready to accept front-opening covers and internal partitions.

Who is it for

Electricians and facility managers who need a robust, easy-to-install cable management solution for dado-height installations. It suits new builds and retrofits where surface mounting is preferred.

Main features

• Made from PVC for durability and light weight.
• Light grey (RAL 7035) finish blends with common wall colours.
• Dimensions: 65 mm height, 130 mm width, 2000 mm length.
• Designed for front-opening covers with an 80 mm opening.
• Can be partitioned internally to separate power and data cables.

Specifications

• Material: Polyvinyl Chloride (PVC)
• Colour: Light Grey (RAL 7035)
• Height: 65 mm
• Width: 130 mm
• Length: 2000 mm
• Compatible cover type: Front-opening / Front-latching
• Compatible cover width: 80 mm
• Halogen-free: No
• Self-extinguishing: Yes
• Mounting type: Wall-mounted (Surface)
• Number of channels: 1 (partitionable)
• Operating temperature range: -5 to +60 °C
• Impact resistance: IK07
• Surface finish: Smooth
• UV resistant: No (for indoor use)

Tips

Pair this base with Hager BR front-opening covers and optional partition walls to create separate compartments for power and data cabling. For a complete installation, order the required number of 2-meter lengths to cover your wall run.
