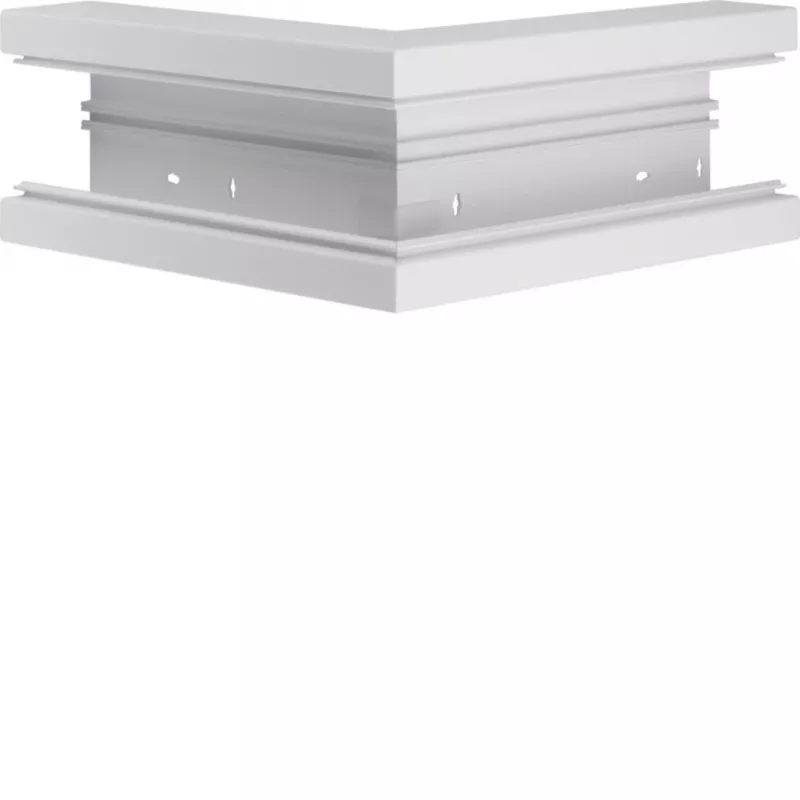

Hager BR6513039016 Vonkajší rohový diel 130x68mm biela

External corner piece for Hager tehalit.BR trunking, enabling clean 90-degree cable routing around external corners. Its clip-on design allows fast, tool-free installation, maintaining a neat finish in indoor cable management.

Advantages

Made from PVC in pure white (RAL 9010), it matches the trunking profile seamlessly. The snap-on mounting ensures a secure fit without additional fasteners, and the matt surface blends with surrounding decor.

Suitable for

• Hager tehalit.BR trunking with dimensions 130 x 68 mm
• Indoor cable management around external corners
• Commercial and residential installations requiring neat cable routing

Key specifications

• Compatible trunking: Hager tehalit.BR, 130 x 68 mm
• Corner angle: 90 degrees
• Material: Polyvinyl Chloride (PVC)
• Colour: Pure White (RAL 9010)
• Mounting: Clip-on / Snap-on
• Halogen-free: No
• Protection class: IP30
• UV resistance: No
• Operating temperature: -5°C to +60°C
• Fire behaviour: Self-extinguishing
• Surface finish: Matt
• Certifications: VDE, CE

Recommendations

For a complete installation, pair with Hager tehalit.BR trunking and matching internal corners. Ensure trunking dimensions match 130 x 68 mm for proper fit.
