Hager BRA0802ELN kryt pre parapetný kanál 80mm hliník eloxovaný 2000mm

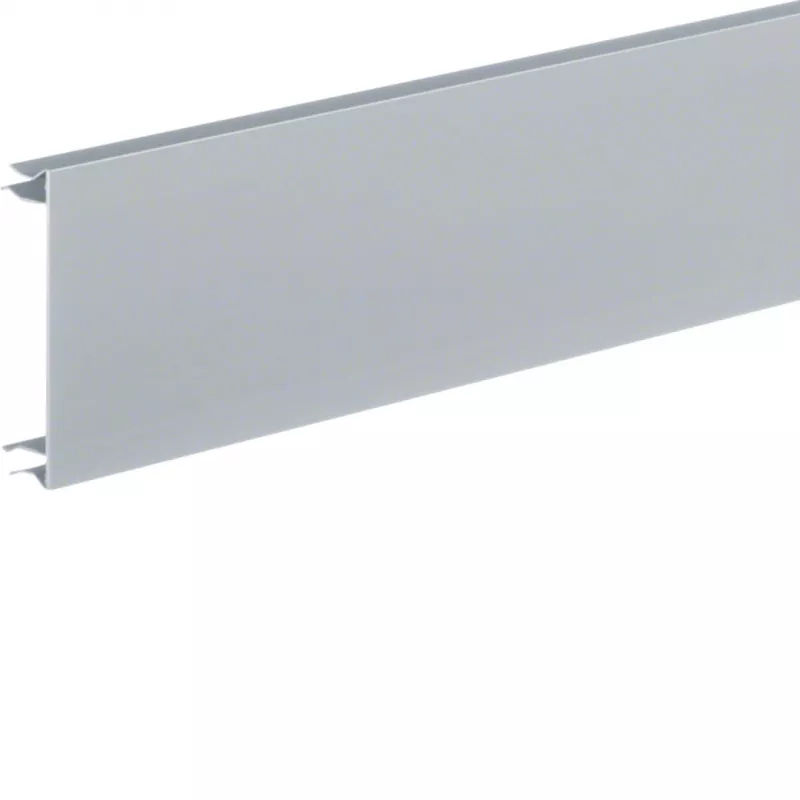

The Hager BRA0802ELN is a high-quality cover for dado trunking, designed for professional electrical installations in office and commercial environments. Manufactured from durable aluminium with an anodized surface finish, this cover provides a sleek, silver appearance while offering excellent corrosion resistance and longevity. It is part of the Tehalit BRA series and is compatible with Hager BRA0802 trunking systems.

Advantages

This cover is halogen-free and UV resistant, ensuring safety and durability in indoor applications. With an impact resistance rating of IK07, it withstands mechanical stresses. The snap-on mounting method allows for quick and secure installation without tools. The protective film preserves the surface during handling and installation.

Suitable for

• Covering and finishing dado trunking in office spaces, meeting rooms, and commercial buildings
• Concealing cables and maintaining a clean, professional appearance
• Indoor electrical installations requiring compliance with EN 50085-1 and EN 50085-2-1 standards

Key specifications

• Product Type: Cover for Dado Trunking
• Material: Aluminium
• Surface Finish: Anodized
• Colour: Aluminium (Silver)
• Length: 2000 mm
• Width: 80 mm
• Height/Thickness: 5 mm
• Mounting Method: Snap-on / Clip-on
• Halogen-free: Yes
• UV Resistant: Yes
• Impact Resistance: IK07
• Operating Temperature: -5 to +60 °C
• Standards Compliance: EN 50085-1, EN 50085-2-1
• Recyclable: Yes

Recommendations

For best results, pair with Hager BRA0802 trunking base and accessories. Ensure the mounting surface is clean and dry before installation. The protective film should be removed after installation to reveal the pristine anodized finish.
