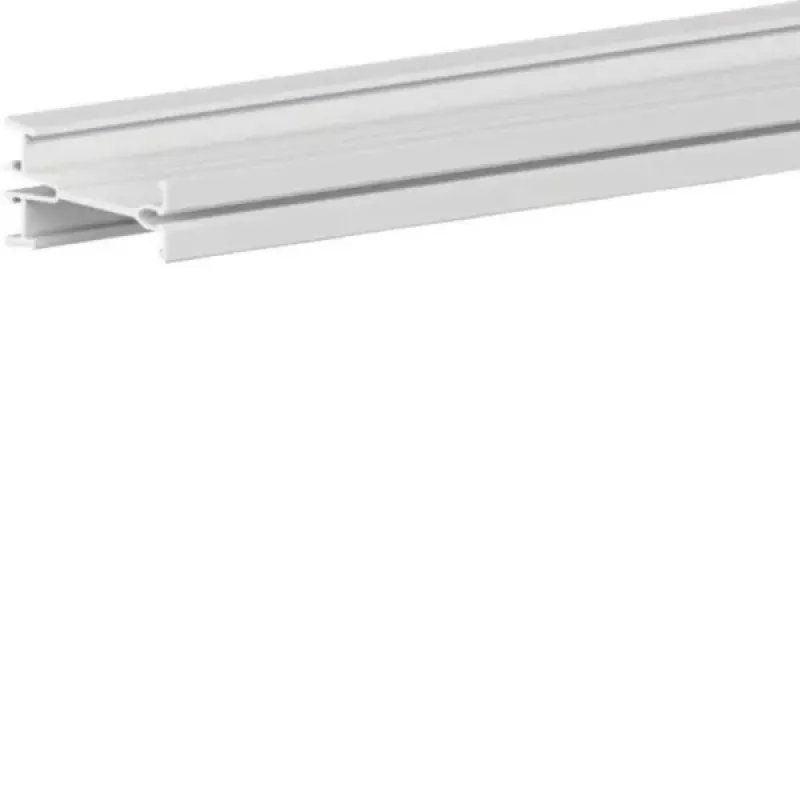

Hager BRHT bezhalogénová plastová deliaca priehradka pre káblové kanály s C profilom, 2000 mm, biela

Create a second compartment inside your Hager cable duct with this 2000 mm long halogen-free plastic partition wall. The BRHT snaps into C-profile ducts to separate power and data lines, keeping installations tidy and safe.

Overview

This partition wall is made from halogen-free plastic in white (RAL 9010) and measures 2000 mm in length, 60 mm in height, and approximately 2 mm in thickness. It is designed for Hager BRN, BRS, and BRH cable duct systems with C-profile installation, allowing quick snap-in mounting without tools.

What stands out

• Halogen-free material reduces toxic smoke in case of fire.
• Snap-in installation saves time during assembly.
• Divides a duct into two separate cable compartments.
• Self-extinguishing plastic enhances safety.
• Operates reliably from -5 to +60 °C.

Technical details

• Product type: Partition wall
• Material: Plastic
• Halogen-free: Yes
• Colour: White (RAL 9010)
• Length: 2000 mm
• Height: 60 mm
• Thickness: Approx. 2 mm
• Compatibility: Cable ducts with C-profile installation
• System compatibility: Hager BRN, BRS, BRH
• Installation type: Snap-in / Clip-on
• Fire behaviour: Self-extinguishing
• Temperature resistance: -5 to +60 °C
• RoHS compliant: Yes
• REACH compliant: Yes
• Number of compartments created: 2

Our verdict

A practical accessory for organised cable management, the BRHT partition wall delivers halogen-free safety and effortless installation in compatible Hager ducts.
