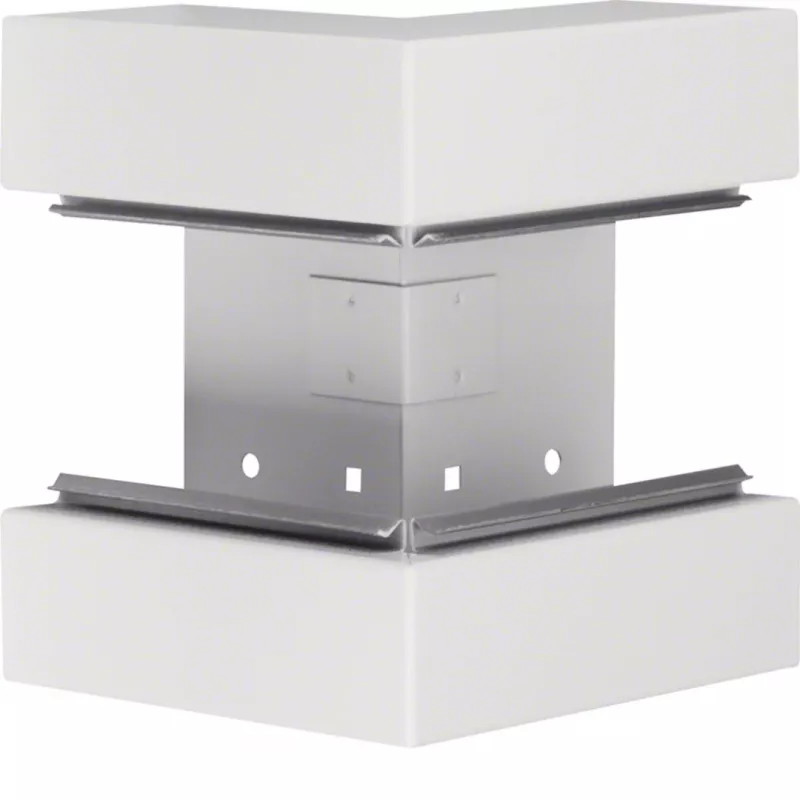

HAGER BRS6517039016 vonkajší roh pre BRS parapetný kanál 170x68mm, čistobiela

Electricians and installers working with the Hager BRS dado trunking system use this external corner to route cables neatly around 90-degree bends on walls. It clips directly onto the 170 x 68 mm trunking profile, creating a clean, professional finish in offices, schools, and commercial spaces.

Key specifications

• Product type: External corner
• System compatibility: Hager BRS dado trunking
• Compatible trunking profile (W x H): 170 x 68 mm
• Material: PVC
• Colour: Pure white (RAL 9010)
• Angle: 90 degrees
• Mounting type: Clip-on
• Halogen-free: Yes
• Surface finish: Matt
• Operating temperature: -5°C to +60°C

Why choose it

This corner piece matches the BRS trunking profile dimensions and colour, ensuring a seamless look. The clip-on design speeds up installation, and the halogen-free PVC material supports safer cable management in public buildings.

Ideal use cases

• Routing power and data cables around wall corners
• Completing dado trunking installations in offices, schools, and hospitals
• Retrofitting or extending existing Hager BRS trunking runs

Good to know

The corner is designed for the Hager BRS system and fits the 170 x 68 mm profile. It is supplied as a single piece in pure white to blend with standard trunking.
