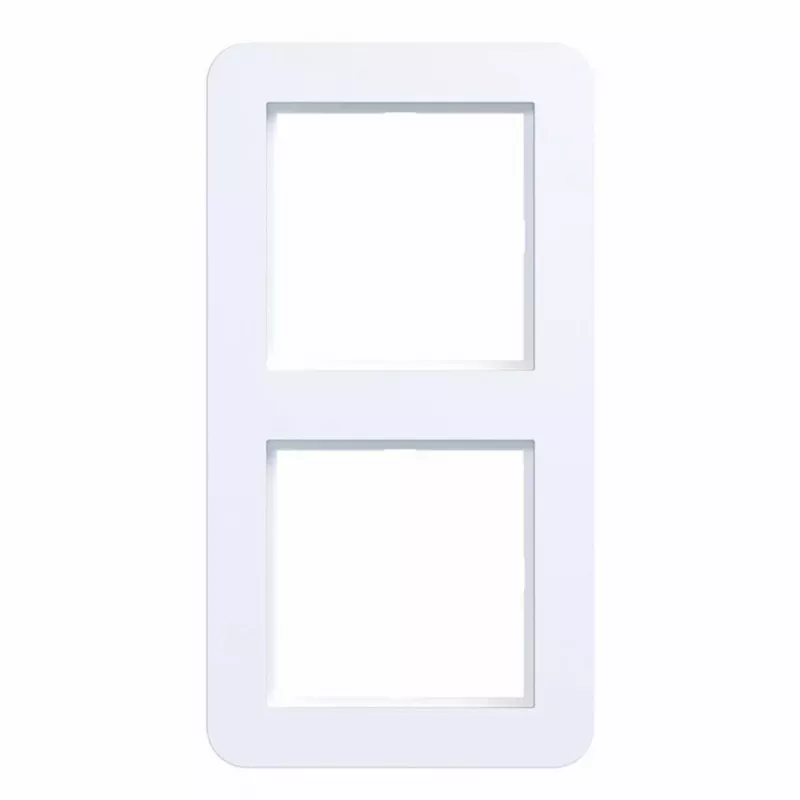

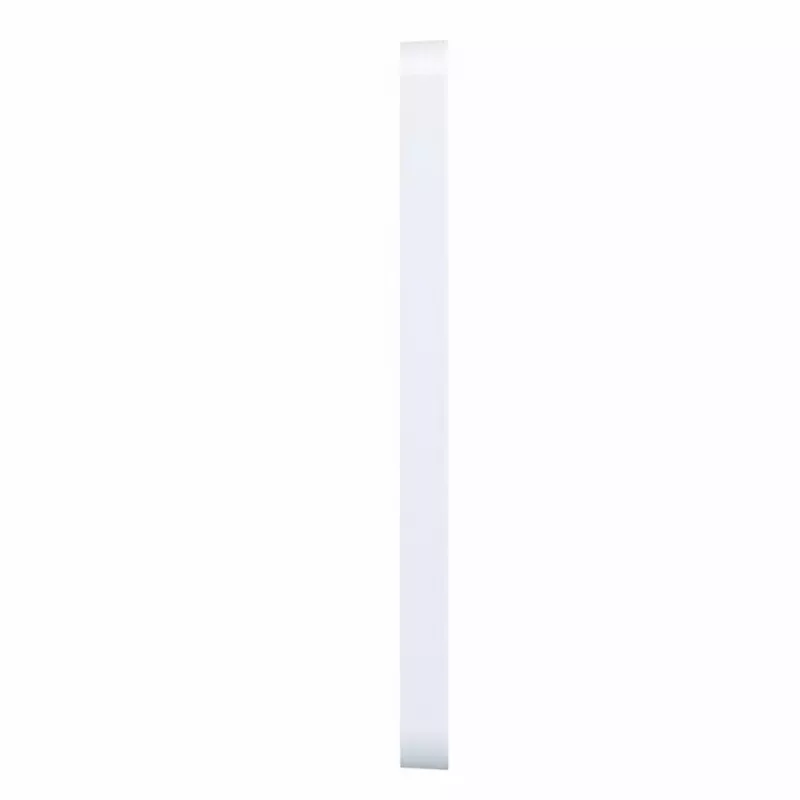

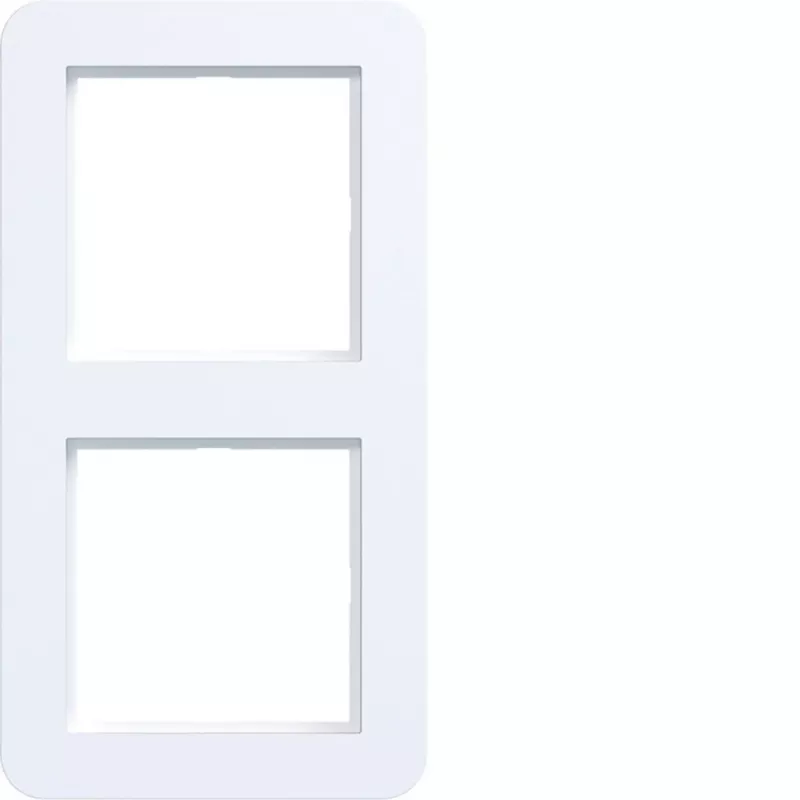

Hager C.1 2-násobný krycí rám svetlobiela matná WAD7200WM

The Hager WAD7200WM is a high-quality 2-gang cover frame from the C.1 design series, finished in light white matt. Designed for flush mounting, this frame provides a sleek and modern look for your electrical installations. It is compatible with Hager C.1 series inserts and can be installed horizontally or vertically.

Advantages

This cover frame offers a clean, minimalist aesthetic with a matt surface that resists fingerprints and scratches. The thermoplastic material is halogen-free and UV-resistant, ensuring long-lasting performance. With an IP20 rating and IK05 impact resistance, it is suitable for indoor use in residential and commercial environments.

Suitable for

• Covering 2-gang switch and socket outlets
• Hager C.1 series flush-mounted installations
• Indoor applications requiring a durable, easy-to-clean frame

Key specifications

• Brand: Hager
• Model: WAD7200WM
• MPN: WAD7200WM
• EAN: 3250610056189
• Product Colour: Light White Matt
• Type: Cover Frame
• Number of Gangs: 2
• Housing Material: Thermoplastic (Polycarbonate)
• Mounting Depth: 9.5 mm
• Width: 151.5 mm
• Height: 80.5 mm
• Depth: 9.5 mm
• International Protection (IP) Code: IP20
• Operating Temperature: -5 to +40 °C

Recommendations

For a complete installation, pair this frame with Hager C.1 series inserts and matching switches or sockets. Ensure the mounting surface is clean and dry before installation.
