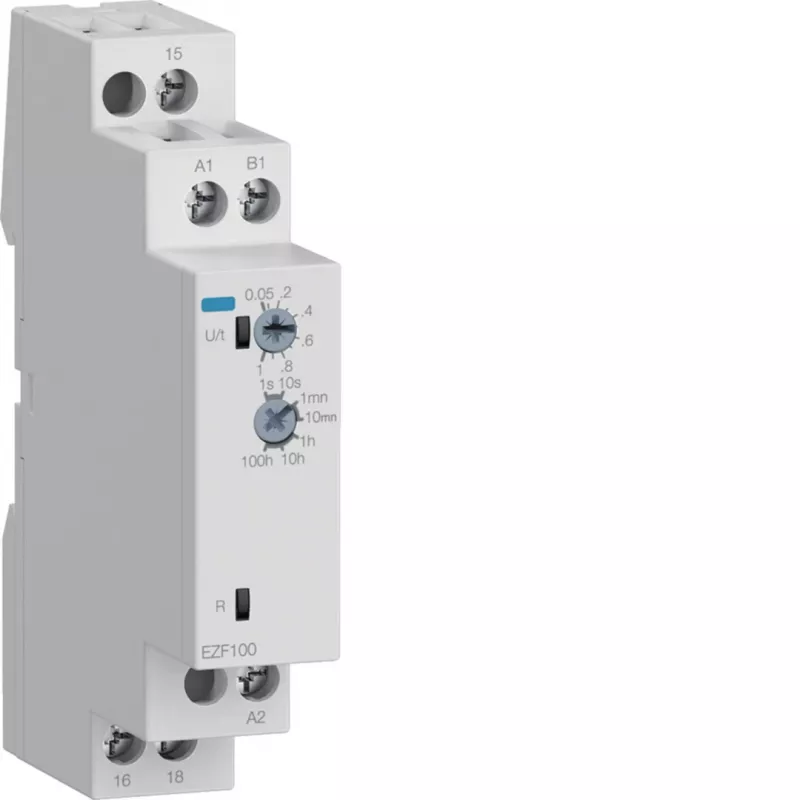

Hager EZF100 multifunkčné časové relé, 230V AC, 8 funkcií, 0,1s-10h, 1 CO kontakt, DIN lišta

The Hager EZF100 stands out as a versatile multi-function time relay, offering eight selectable timing functions in a single DIN rail module. Unlike fixed-function timers, this unit adapts to diverse automation and control tasks without requiring multiple devices.

Highlights

• 8 timing functions for flexible control
• Wide time range: 0.1 s to 10 h
• 1 changeover contact (SPDT) rated 8 A / 250 V AC
• Compact 1-module (17.5 mm) DIN rail mounting
• LED indicators for power and relay status

In daily use

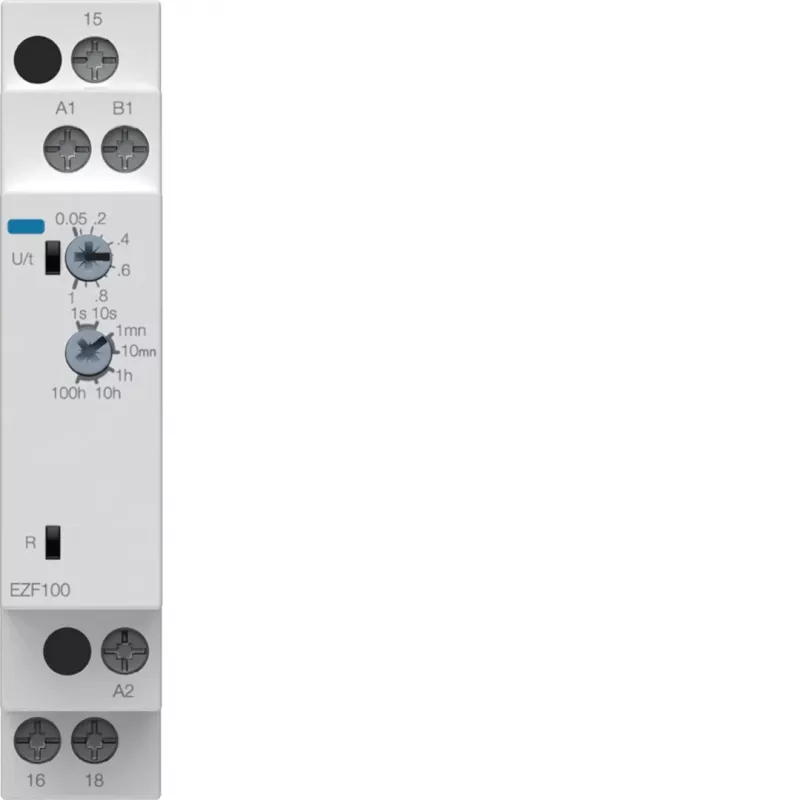

Set the desired function and time via the front dials, then let the relay manage lighting, ventilation, or motor control. The screw terminals ensure secure wiring, and the clear LED status simplifies commissioning and troubleshooting.

Full specifications

• Supply voltage: 230 V AC, 50/60 Hz
• Time range: 0.1 s to 10 h
• Output: 1 CO (SPDT), 8 A / 250 V AC (resistive)
• Minimum switching current: 10 mA
• Power consumption: 1.5 VA
• Operating temperature: -20 to +55 °C
• Protection: IP40 front, IP20 terminals
• Connection: screw terminals
• Electrical life: 10^5 cycles; mechanical life: 10^7 cycles
• Standards: EN 61812-1

Final note

The EZF100 combines reliability and flexibility in a space-saving design, making it a practical choice for control panel builders and electricians.
