Hager FP93W11N rozvádzač s prúdovými transformátormi a elektromermi 1400x800x205 mm 2 pole elektromerov

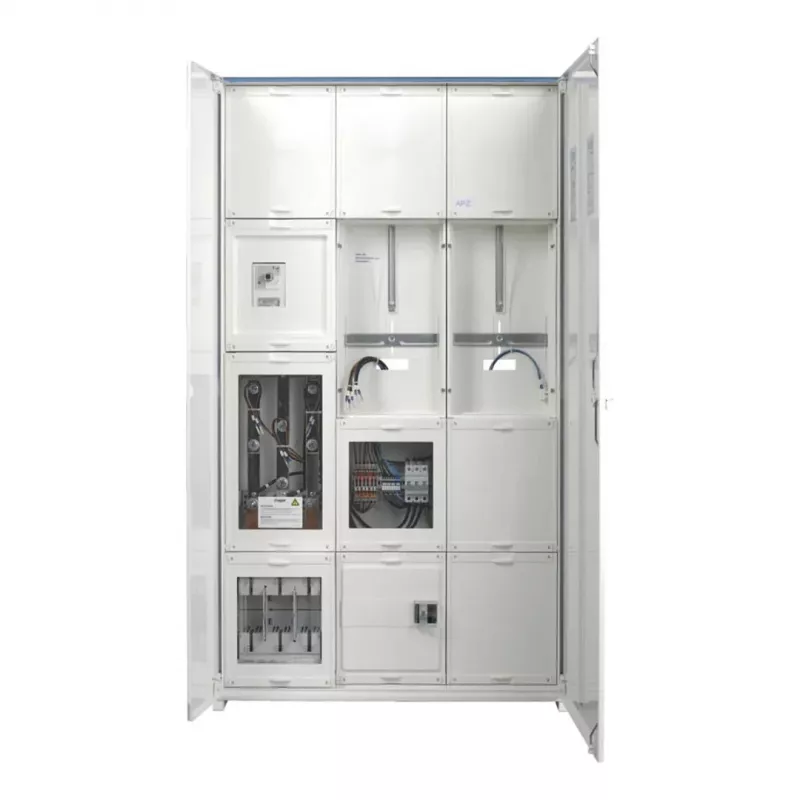

The Hager FP93W11N is a high-quality current transformer and metering cabinet from the Univers Z series, designed for surface mounting in commercial, industrial, and multi-family residential applications. This robust cabinet provides secure housing for metering equipment and distribution components, ensuring reliable energy management.

Advantages

Durable sheet steel construction with RAL 9010 pure white finish ensures long-lasting performance and a clean appearance. The lockable steel door with 180° opening angle provides easy access and enhanced security. IP44 protection (with door) safeguards against dust and splashing water, making it suitable for indoor and sheltered outdoor installations.

Suitable for

• Current transformer metering in commercial buildings
• Industrial power distribution
• Multi-family dwelling metering systems
• Surface-mounted electrical enclosures

Key specifications

• Product Type: Current Transformer and Metering Cabinet
• Series: Hager Univers Z
• Mounting: Surface-mounted (Aufputz)
• Number of Meter Fields: 2
• Distribution Fields: 1 (5 rows)
• Protection Class: IP44 (with door), IP31 (without door)
• Material: Sheet steel
• Door: Steel, lockable
• Colour: RAL 9010 (Pure White)
• Rated Current (Main Busbar): Up to 250 A
• Rated Voltage: 230/400 V AC
• Busbar System: 5-pole
• Cable Entry: Top and bottom, pre-punched/flange plates
• Standards: DIN VDE 0603-1, DIN 43870-1, VDE-AR-N 4101
• PE/N Terminals: 2x (PE+N)
• Module Units per Row: 12 TE
• Total Module Units: 60 TE
• Door Opening Angle: 180°
• Dimensions: 1400 x 800 x 205 mm (H x W x D)

Recommendations

For optimal performance, ensure proper cable entry sealing and use appropriate metering devices. This cabinet is designed for professional installation by qualified electricians.
