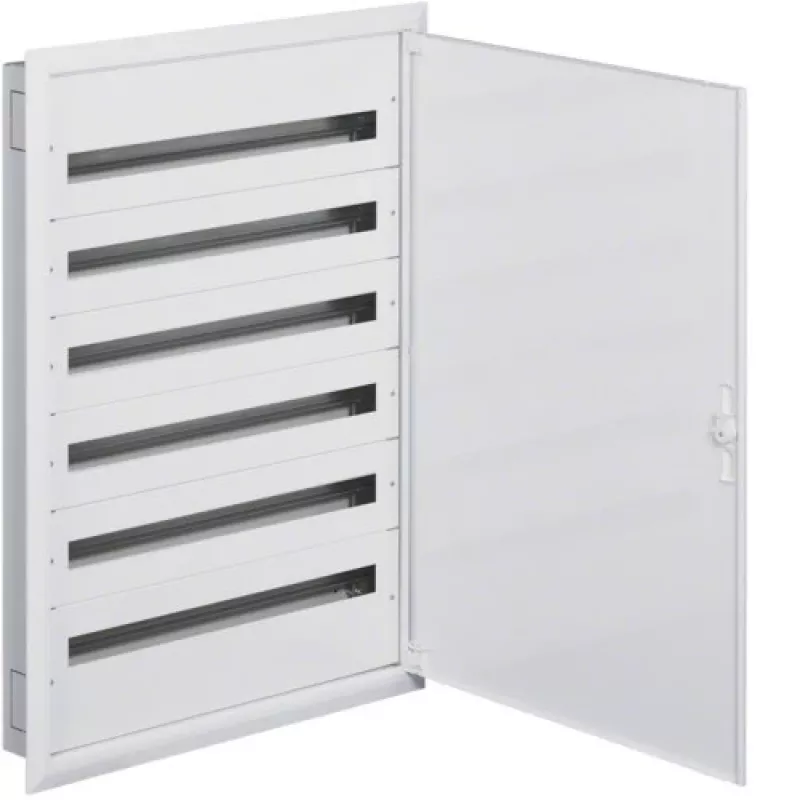

HAGER FW636FT podomietkový rozvádzač, 6 radov, 216 modulov, PE/N svorky, IP30, biela

Electrical installations in residential and commercial buildings often suffer from cramped wiring spaces and limited expansion options. The HAGER FW636FT flush-mounted distribution board solves this by offering a spacious 6-row enclosure with a total capacity of 216 modules (36 modules per row), ensuring ample room for circuit breakers, residual current devices, and other modular devices. Its integrated PE/N terminal blocks simplify earthing and neutral connections, while the IP30 rating protects against solid objects larger than 2.5 mm, making it suitable for indoor use in dry environments.

Who is it for

This distribution board is ideal for electricians, panel builders, and facility managers who need a reliable and future-proof enclosure for residential, commercial, or light industrial electrical distribution. It is particularly suited for projects requiring a flush-mounted solution with high module capacity and easy installation.

Main features

• 6 rows with 36 modules per row, providing a total of 216 modules for extensive circuit configuration.
• Integrated PE and N terminal blocks for quick and safe earthing and neutral connections.
• IP30 protection rating: guards against solid objects ≥2.5 mm, suitable for indoor use.
• Flush-mounted design for a clean, space-saving installation in walls.
• Made from self-extinguishing technoplastic, ensuring fire safety and durability.
• White RAL 9003 finish blends seamlessly with modern interiors.
• Compatible with Acti9, Resi9, and Multi9 modular devices.

Specifications

• Product Type: Flush-Mounted Electrical Enclosure
• Mounting Type: Flush-mounted
• Number of Rows: 6
• Modules per Row: 36
• Total Modules: 216
• Included Terminals: Protective Earth (PE) and Neutral (N)
• IP Protection Rating: IP30
• IK Protection Rating: IK07
• Insulation Class: Class II
• Material: Self-extinguishing Technoplastic
• Color: White (RAL 9003)
• Rated Operational Voltage (Ue): 400 V AC
• Rated Current (In): Up to 125 A
• Glow Wire Test: 650 °C (IEC 60695-2-11)
• Standards: IEC 61439-3, IEC 60670-24
• Door Type: Transparent (optional/variant dependent)
• Compatibility: Acti9, Resi9, Multi9 devices
• Environmental Conditions: Indoor use

Tips

For optimal performance, ensure the distribution board is installed by a qualified electrician in accordance with local regulations. Plan your module layout in advance to maximize the use of the 216-module capacity, and consider future expansion by leaving spare modules. The flush-mounted design is ideal for new constructions or renovations where a clean, integrated look is desired.
