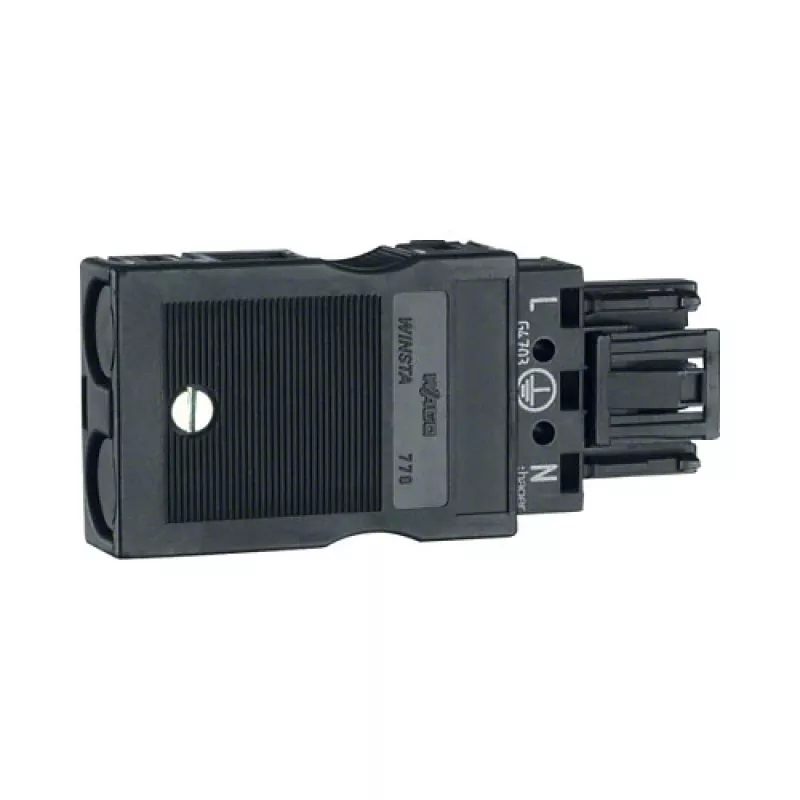

Hager G4713 3-pólový výstupný konektor s Wago svorkami, 1,5-2,5 mm², 400V, čierny

This Hager output plug connector stands out by combining Wago push-in technology with a compact, pluggable design that eliminates screw terminals entirely. The G4713 accepts both solid and fine-stranded conductors from 1.5 to 2.5 mm² without ferrules, so wiring is faster and more consistent across every connection point. It is built for the G Series ecosystem and rated for 400 V AC at 16 A, making it suitable for lighting circuits, control wiring, and modular distribution boards where space and reliability matter.

Highlights

• 3-pole plug connector with Wago spring clamp terminals for tool-free push-in wiring
• Accepts solid and fine-stranded conductors from 1.5 to 2.5 mm²
• Rated voltage 400 V AC, rated current 16 A, insulation voltage 500 V
• Black polyamide (PA) housing, UL94 V-0 flammability rating
• Pluggable design with IP20 protection when mated
• Operating temperature range -5 °C to +40 °C
• Stripping length 9 mm for consistent termination
• Compatible with Hager G Series devices and Wago terminal system

In daily use

Electricians appreciate the G4713 because it removes the need to tighten screws or check torque settings. Strip the conductor to 9 mm, push it into the terminal, and the spring clamp holds it securely—even under vibration. The plug-in mounting allows quick connection and disconnection of field wiring without disturbing adjacent modules. Because it handles both rigid and flexible conductors, one connector type covers most installation scenarios, reducing inventory and simplifying procurement.

Full specifications

• Product type: Output plug connector
• Number of poles: 3
• Connection technology: Wago push-in terminal (spring clamp)
• Conductor cross-section solid: 1.5 - 2.5 mm²
• Conductor cross-section fine-stranded: 1.5 - 2.5 mm²
• Rated voltage (AC): 400 V
• Rated current: 16 A
• Insulation voltage: 500 V
• Material: Polyamide (PA)
• Colour: Black
• Mounting type: Plug-in
• Pollution degree: 2
• Flammability rating: UL94 V-0
• Operating temperature range: -5 °C to +40 °C
• Stripping length: 9 mm
• Protection class: IP20 (when plugged in)
• Standards: VDE
• Series: Hager G Series

Final note

The Hager G4713 is a practical choice for installers who want to speed up wiring without sacrificing safety. Its push-in terminals and pluggable format make it a reliable component in modern electrical distribution.
