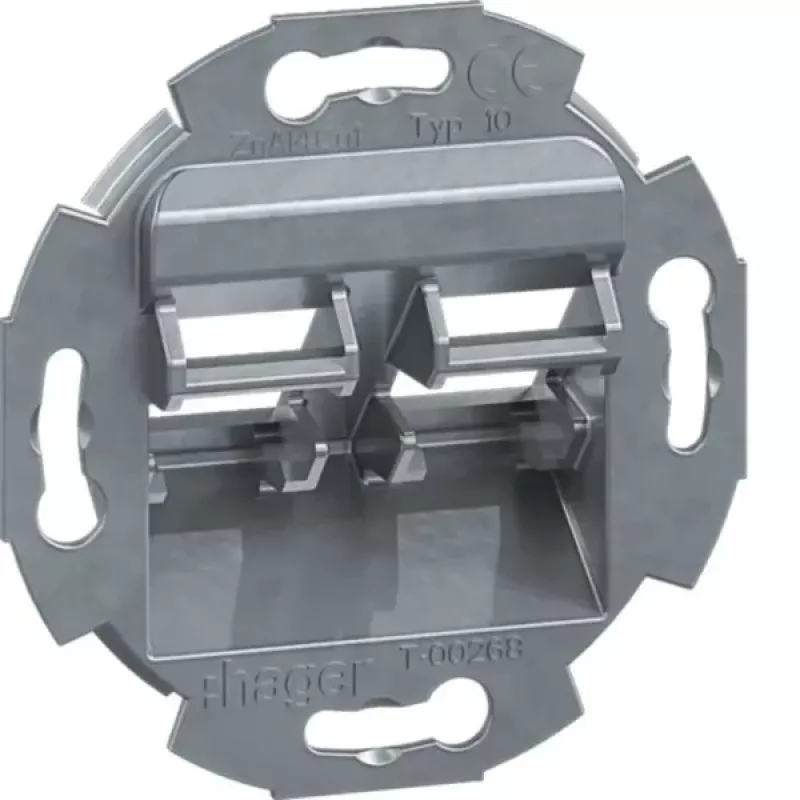

HAGER GMDM102 montážny rám 2-modul pre GZDM2 RJ45 moduly

The HAGER GMDM102 is a mounting frame designed to accommodate two Hager GZDM2 modules, enabling the creation of double data outlets for RJ45 connections. This modular frame snaps into compatible flush-mounted or surface-mounted outlets, providing a clean and secure installation for network cabling.

Advantages

Its modular design allows for quick and tool-free assembly of GZDM2 modules, simplifying installation and future maintenance. The frame is part of the Hager tehalit system, ensuring compatibility with a wide range of outlet plates and covers.

Suitable for

• Data network installations requiring two RJ45 ports in a single outlet
• Use with Hager GZDM2 modules in residential or commercial buildings
• Flush-mounted or surface-mounted outlet boxes that support modular inserts

Key specifications

• Number of module slots: 2
• Module compatibility: Hager GZDM2 modules
• Connector type compatibility: RJ45 (for GZDM2 RJ45 modules)
• Material: Thermoplastic
• Mounting method: For flush-mounted or surface-mounted outlets
• System compatibility: Hager GZDM2 system

Recommendations

For a complete double data outlet, pair this frame with two Hager GZDM2 RJ45 modules and a compatible cover plate from the tehalit range.
