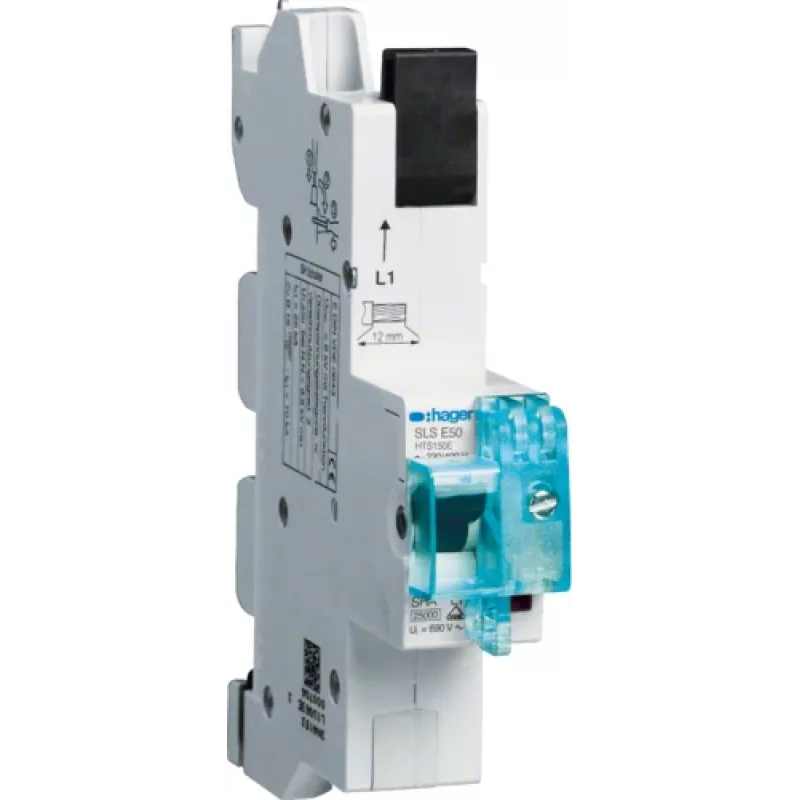

Hager HTS150E 1-pólový 50A odpojovač záťaže 230/400V AC DIN lišta

Rated at 50 A with a 230/400 V AC operational voltage, the Hager HTS150E switch disconnector delivers reliable circuit isolation in a single 17.5 mm module.

Overview

The HTS150E is a 1-pole switch disconnector for DIN rail mounting. It handles 50 A nominal current and operates at 230/400 V AC, 50/60 Hz. Connection capacity accepts solid conductors from 1.5 to 25 mm² and flexible conductors from 1.5 to 16 mm². The device provides IP20 protection at terminals and IP40 on the front face.

What stands out

• Compact 1-module width saves space on the rail
• High 50 A rating for demanding circuits
• Wide operating temperature range: -25 to 60 °C
• Mechanical endurance of 20,000 cycles

Technical details

• Rated insulation voltage: 500 V
• Rated impulse withstand voltage: 4 kV
• Rated conditional short-circuit current: 1500 A with 50 A gG fuse
• Rated short-circuit making capacity: 1500 A peak
• Electrical endurance: 10,000 cycles
• Storage temperature: -40 to 80 °C
• Standard: EN 60947-3

Our verdict

A robust and compact isolation solution for industrial and commercial electrical distribution.
