Hager K46N 5-pólová svorka hlavného rozvádzača

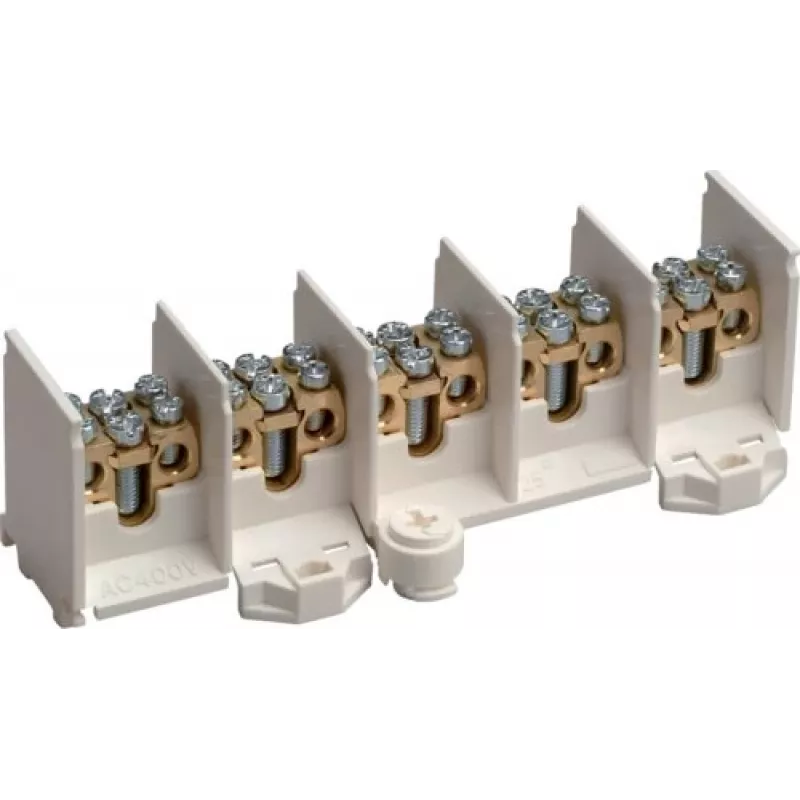

The Hager K46N is a 5-pole main distribution terminal block designed for reliable connections in electrical distribution systems. It accepts main conductors from 6 to 25 mm² and branch conductors from 6 to 16 mm², making it suitable for a wide range of wiring configurations.

Highlights

• 5-pole design with one main input and two branch outputs per pole
• Supports rigid and flexible conductors
• Rated current up to 100 A and voltage up to 400 V AC
• Compact grey polyamide housing for DIN rail or screw mounting

In daily use

The K46N simplifies distribution tasks with its screw connection system, ensuring secure and durable terminations. Its IP20 protection is suitable for installation in distribution boards and enclosures.

Full specifications

• Number of poles: 5
• Main conductor cross-section: 6–25 mm² (rigid/flexible)
• Branch conductor cross-section: 6–16 mm² (rigid/flexible)
• Rated current: 100 A
• Rated voltage: 400 V AC
• Connection type: Screw
• Mounting: DIN rail (EN 60715) or screw mounting
• Material: Polyamide (insulation), brass (conductors)
• Colour: Grey
• Protection class: IP20
• Operating temperature: -5 to +40 °C
• Short-circuit current: 10 kA (1s)
• Total connections: 15 (5 main inputs, 10 branch outputs)

Final note

A robust terminal block for main distribution applications, offering flexibility and high current capacity.
