Hager káblový kanál LF2003609016 20x35mm dopravná biela

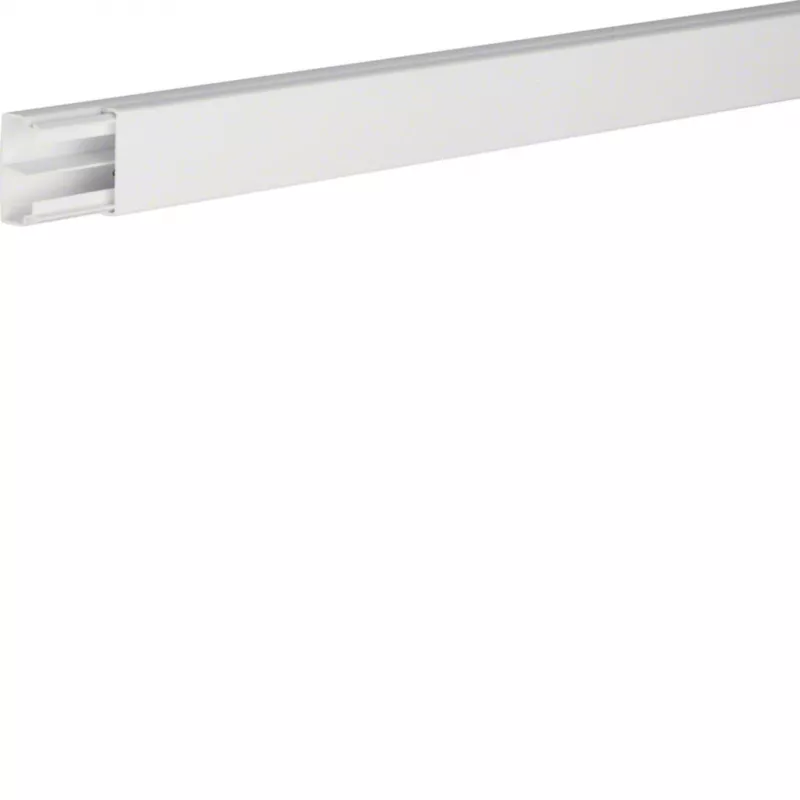

The Hager LF2003609016 cable trunking is a high-quality PVC cable duct designed for professional indoor cable routing in electrical installations. With dimensions of 20x35mm and a length of 2000mm, it provides a neat and organized solution for managing cables in residential, commercial, and industrial environments. The trunking features a clip-on lid for easy access and a solid wall construction for durability.

Advantages

This cable trunking offers flame-retardant properties, ensuring safety in case of fire. It is self-extinguishing according to EN 50085-1, providing reliable protection. The traffic white (RAL 9016) color blends seamlessly with light-colored walls and ceilings, maintaining a clean aesthetic. The base perforation allows for secure screw mounting, ensuring stability during installation.

Suitable for

• Indoor cable routing in electrical installations
• Surface mounting on walls and ceilings
• Protecting and organizing low-voltage cables, data cables, and power cables
• Use in residential, commercial, and industrial buildings

Key specifications

• Product Type: Cable Trunking / Cable Duct
• Material: Polyvinyl Chloride (PVC)
• Color: Traffic White (RAL 9016)
• Height: 20 mm
• Width: 35 mm
• Length: 2000 mm
• Lid Type: Clip-on lid
• Mounting Type: Base perforation for screw mounting
• Halogen-free: No
• Self-extinguishing: Yes, according to EN 50085-1
• Temperature Range (Installation): -5°C to +60°C
• Temperature Range (Operation): -15°C to +60°C
• Protection Degree: IP30 (with lid)
• Number of Compartments: 1
• Wall Type: Solid wall
• Usable Cross-Section: Approx. 5.5 cm²
• Standards: EN 50085-1, EN 50085-2-1
• Fire Behavior: Flame-retardant
• UV Resistance: Limited (for indoor use)

Recommendations

For optimal installation, use appropriate screws and wall plugs. Ensure the trunking is mounted on a clean, dry surface. For bends and junctions, use compatible Hager accessories to maintain a professional finish.
