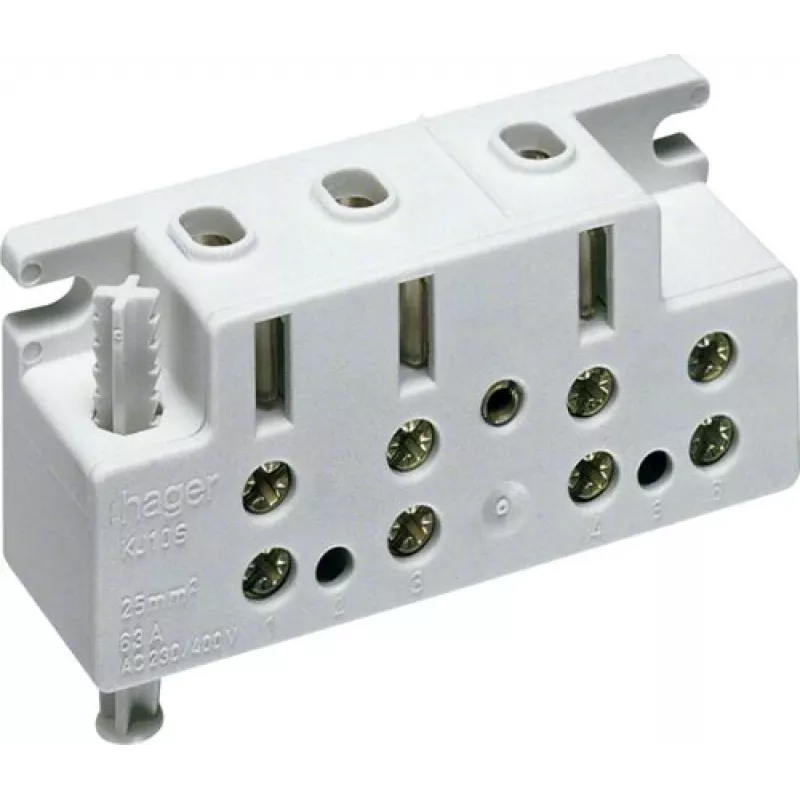

HAGER KJ10S jednofázová svorka pripojenia elektromera 63A 2-pólová sivá

Rated at 63 A and 230 V AC, the HAGER KJ10S meter connection terminal provides a secure screw-terminal interface for single-phase electricity meters. Its 2-pole design handles phase and neutral conductors up to 10 mm² rigid or 6 mm² flexible.

Overview

The KJ10S is a compact, snap-on terminal block engineered for direct mounting in meter cabinets and distribution boards. It features a 4-point configuration—two terminals for phase in/out and two for neutral in/out—ensuring straightforward wiring for AC installations. The polyamide housing offers durability and electrical insulation.

What stands out

• 63 A rated current for residential and light commercial metering
• Accepts rigid conductors from 1.5 to 10 mm² and flexible from 1.5 to 6 mm²
• Snap-on mounting for quick installation without tools
• Grey polyamide body blends with standard electrical enclosures

Technical details

• Product type: Meter connection terminal
• Application: Single-phase electricity meters
• Current type: AC
• Number of poles: 2
• Rated current: 63 A
• Rated voltage: 230 V AC
• Connection type: Screw terminal
• Mounting type: Snap-on / direct mounting
• Insulation material: Polyamide (PA)
• Colour: Grey
• Operating temperature range: -25 to +70 °C

Our verdict

A reliable and compact solution for single-phase meter connections, the KJ10S offers robust screw terminals and easy snap-on installation for professional electricians.
