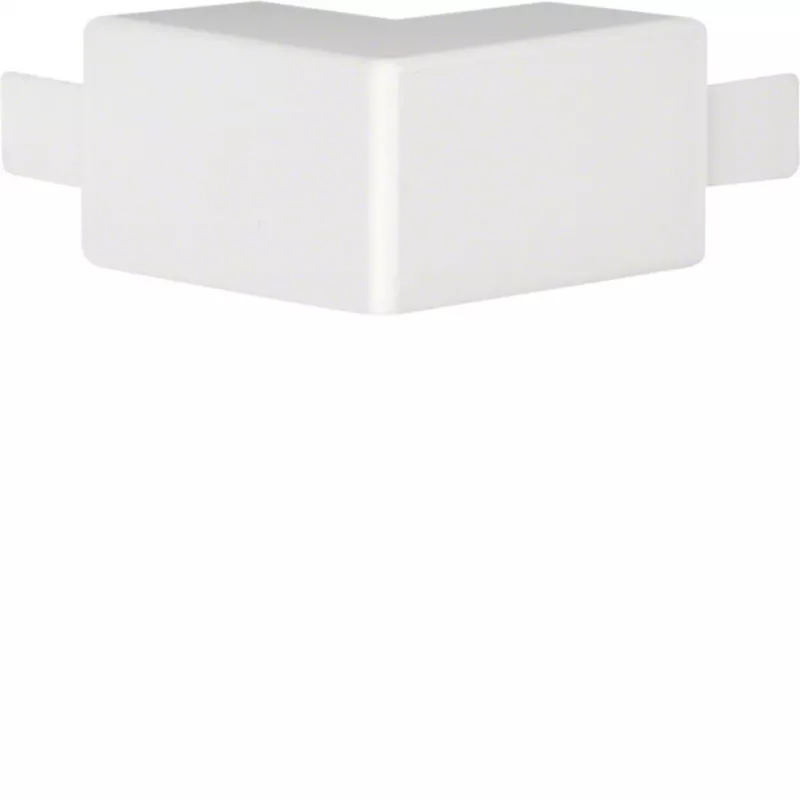

Hager LF-séria vonkajší roh 30x30 mm PVC bezhalogénový dopravná biela LF3003039016

This external corner is part of the Hager LF trunking system, specifically designed for 30x30 mm ducts. Its halogen-free PVC construction sets it apart from standard PVC corners, offering improved fire safety characteristics for building installations. The traffic white (RAL 9016) finish provides a clean, professional appearance that blends seamlessly with the LF trunking range.

Highlights

• Halogen-free PVC material
• Compatible with LF 30x30 mm trunking
• Traffic white (RAL 9016) colour
• Clip-on installation, no tools required
• 90-degree angle for clean directional changes

In daily use

Installers appreciate the push-fit mechanism that allows quick and secure attachment to the trunking base, reducing installation time. The corner maintains the smooth, continuous cable pathway of the LF system, protecting cables from sharp bends. Its flame-retardant, self-extinguishing properties contribute to safer electrical installations in residential and commercial buildings.

Full specifications

• Accessory Type: External Corner
• Compatible Trunking Dimensions (W x H): 30 x 30 mm
• Material: Polyvinyl Chloride (PVC)
• Halogen-Free: Yes
• Color: Traffic White (RAL 9016)
• Installation Type: Clip-on / Push-fit
• Angle: 90 degrees
• Fire Behavior: Flame retardant, self-extinguishing
• Temperature Resistance (Operating): -5 °C to +60 °C
• UV Resistance: No (Indoor use recommended)
• Mounting Position: Horizontal or Vertical
• Application: Cable routing and protection in electrical installations
• Series: LF
• Surface Finish: Smooth

Final note

A reliable and safety-conscious choice for completing 30x30 mm LF trunking installations with halogen-free requirements.
