Hager LFF2003569016 koncový diel dopravná biela (RAL 9016) pre tehalit.LFF káblový kanál 20x35 mm

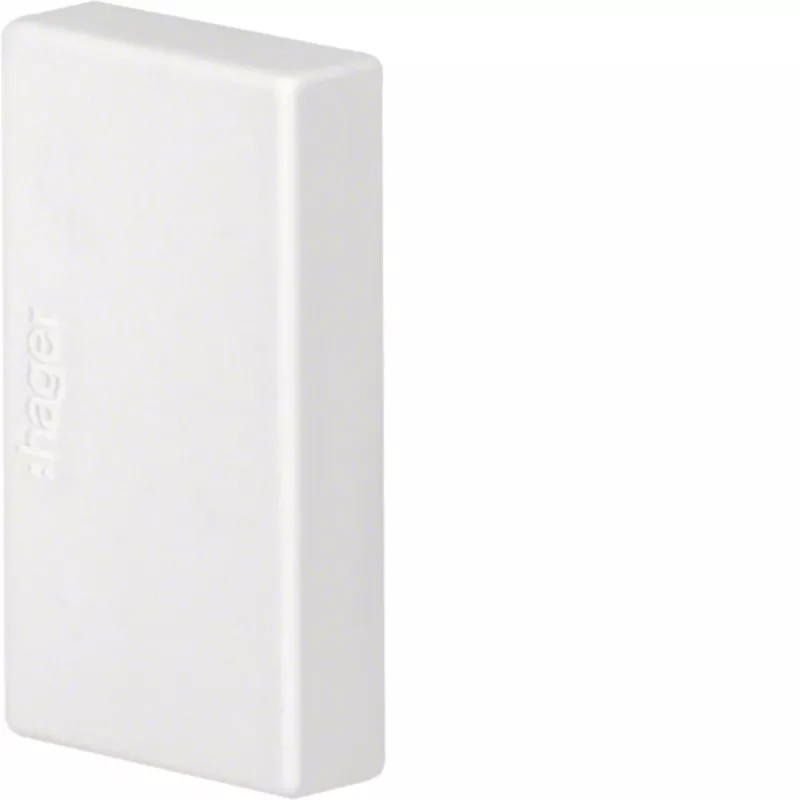

The Hager LFF2003569016 End Cap is a high-quality accessory designed for the tehalit.LFF cable trunking system. Manufactured from durable PVC, this end cap provides a clean, professional finish to trunking runs, ensuring safety and aesthetic appeal. Its traffic white (RAL 9016) colour matches standard trunking profiles, making it ideal for office, commercial, and industrial installations.

Advantages

This end cap offers quick and tool-free clip-on installation, saving time and labour costs. It is halogen-free and self-extinguishing, contributing to fire safety. The UV-stable material ensures long-lasting performance even in sun-exposed areas. With IK07 impact resistance and IP40 protection when installed, it provides reliable protection for cables.

Suitable for

• Finishing open ends of Hager tehalit.LFF cable trunking (20 mm height, 35 mm width)
• Office environments, data centres, and commercial buildings
• Surface-mounted or flush-mounted trunking systems
• Universal left/right side application

Key specifications

• Product Type: End Cap
• System Series: Hager tehalit.LFF
• Trunking Compatibility: 20 mm height, 35 mm width
• Colour: Traffic White (RAL 9016)
• Material: PVC (Polyvinyl Chloride)
• Halogen-free: Yes
• Mounting Method: Clip-on / Push-fit
• UV Stability: Yes
• Operating Temperature: -5 °C to +60 °C
• Fire Behaviour: Self-extinguishing
• Impact Resistance: IK07
• Protection Class: IP40 (when installed)
• Certifications: CE, VDE

Recommendations

For a complete trunking system, pair this end cap with Hager tehalit.LFF trunking profiles, corners, and junctions. Ensure the trunking is cut cleanly for a secure fit. Suitable for use with cable management in offices, workshops, and retail spaces.
