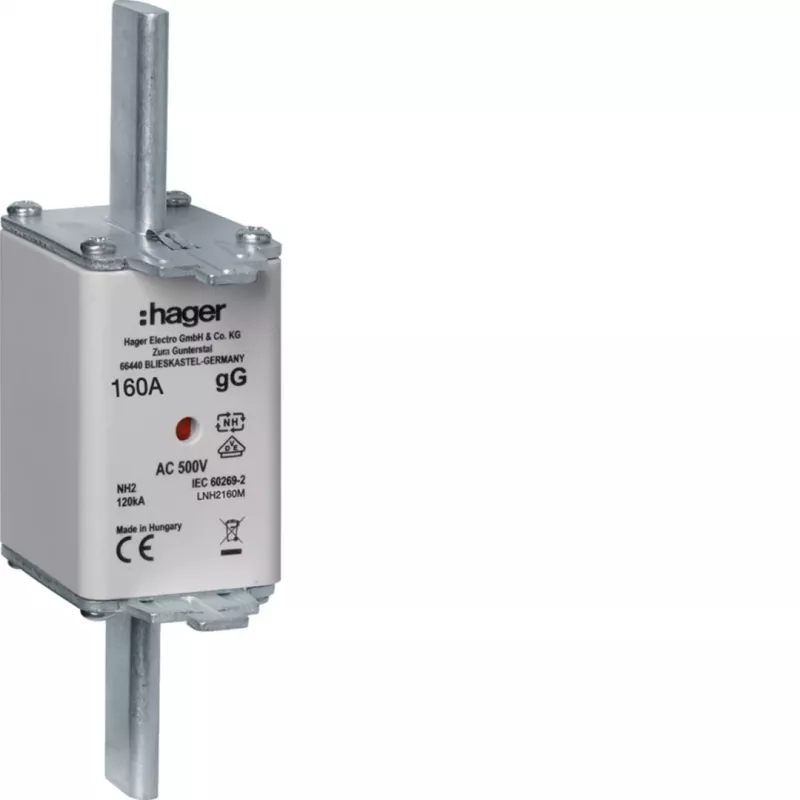

HAGER LNH2160M NH2 poistka 160A 500V gG s tavnou signalizáciou

This HAGER NH fuse stands out with its size 2 blade-contact design, delivering a rated current of 160 A at 500 V AC for reliable cable and line protection in industrial distribution systems. Unlike smaller fuse links, the NH2 format supports higher current ratings while maintaining a compact footprint for standard fuse bases.

Highlights

• Rated current: 160 A
• Rated voltage: 500 V AC
• Operating class: gG (general purpose)
• Breaking capacity: 120 kA
• Melt indicator with striker for remote signaling
• Blade contacts for NH2 fuse bases

In daily use

Installed in NH2 fuse switch-disconnectors or fuse bases, the LNH2160M protects cables and lines against overloads and short circuits. The integrated melt indicator provides a clear visual signal when the fuse has operated, and the striker can actuate auxiliary contacts for remote monitoring. Its ceramic body and silver-plated copper contacts ensure long-term stability under rated load.

Full specifications

• Fuse type: NH fuse
• Fuse size: NH2 (Size 2)
• Rated current: 160 A
• Rated voltage: 500 V AC
• Operating class: gG (General Purpose)
• Breaking capacity: 120 kA
• Indicator type: Melt indicator (striker)
• Standard compliance: IEC 60269-2
• Application: Cable and line protection
• Mounting type: Blade contacts
• Power dissipation: 17.5 W at rated current
• Body material: Ceramic
• Contact material: Silver-plated copper
• Operating temperature: -5°C to +40°C
• Voltage type: AC
• Frequency: 50/60 Hz

Final note

A dependable NH2 fuse link for demanding electrical distribution applications, offering high breaking capacity and clear status indication.
