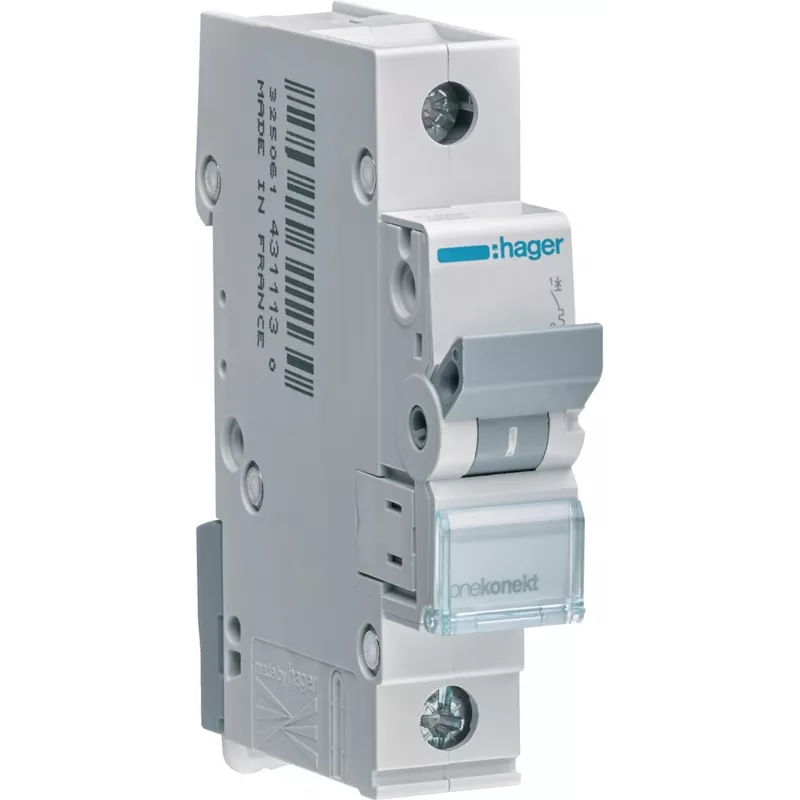

Hager MCN110E istič, 1-pólový, 10A, charakteristika C, 6kA

The Hager MCN110E is a high-quality miniature circuit breaker (MCB) designed for reliable protection of electrical circuits against overloads and short circuits. With a 1-pole configuration, 10A rated current, and C-curve tripping characteristic, it is ideal for general-purpose applications in residential and commercial installations. This MCB complies with EN 60898-1 and offers a breaking capacity of 6kA, ensuring safety and performance.

Advantages

Compact 1-pole design saves space on DIN rail; C-curve provides optimal protection for inductive loads; high breaking capacity of 6kA ensures safety; easy installation with screw terminals; clear ON/OFF position indicator for quick status checks.

Suitable for

• Protection of lighting circuits
• Protection of socket outlets
• General-purpose circuit protection in distribution boards
• Residential and commercial electrical installations

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 1P
• Rated Current (In): 10 A
• Tripping Curve: C
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail (EN 60715)
• Terminal Type: Screw terminals
• Terminal Capacity (Rigid): 1 to 25 mm²
• Terminal Capacity (Flexible): 1 to 16 mm²
• Degree of Protection (Terminals): IP20
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Standard Compliance: EN 60898-1
• Energy Limiting Class: 3
• Operating Temperature: -25 to +60 °C
• Storage Temperature: -40 to +80 °C
• Connection Position: Top and bottom
• Indication: ON/OFF position indicator

Recommendations

For optimal protection, always use MCBs with appropriate rated current and breaking capacity for your application. Ensure proper installation by a qualified electrician.
