Hager prepäťový ochranný modul N-PE Typ 2 SPD 255V 20kA/40kA 1,5kV SPE040N

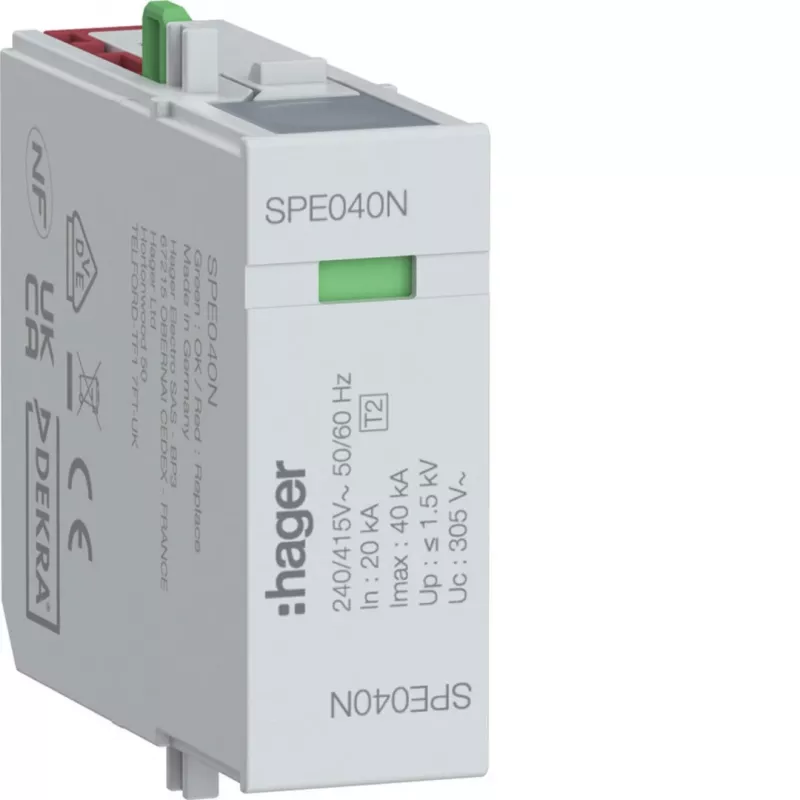

The Hager SPE040N is a plug-in surge protection module for the N-PE path, offering a high discharge capacity of 20 kA nominal and 40 kA maximum. Unlike many similar modules, it combines a low voltage protection level of 1.5 kV with a fast response time under 25 ns, ensuring sensitive equipment is shielded from indirect lightning and switching overvoltages.

Highlights

• Type 2 surge protection module for N-PE (neutral-earth) path
• Maximum continuous operating voltage 255 V AC
• Nominal discharge current 20 kA, maximum 40 kA (8/20 µs)
• Voltage protection level ≤ 1.5 kV
• Visual status indicator: green OK, red replace
• Plug-in design for easy replacement without rewiring

In daily use

Installed in a suitable DIN rail base unit, the SPE040N protects low-voltage installations in TN-S, TN-C-S, and TT systems. Its replaceable module design simplifies maintenance, and the clear status indicator allows quick checks. The thermoplastic housing in grey blends into standard distribution boards.

Full specifications

• Product type: Surge protection module
• SPD type: Type 2
• Protection path: N-PE
• Maximum continuous operating voltage (Uc): 255 V AC
• Nominal discharge current (In): 20 kA (8/20 µs)
• Maximum discharge current (Imax): 40 kA (8/20 µs)
• Voltage protection level (Up): ≤ 1.5 kV
• Response time: < 25 ns
• Number of poles: 1
• Mounting type: Plug-in module for DIN rail base unit
• Protection technology: Metal oxide varistor (MOV)
• Visual status indicator: Yes (green = OK, red = replace)
• Operating temperature range: -40 to +80 °C
• Degree of protection: IP20 (when installed in appropriate enclosure)
• Standards compliance: EN 61643-11
• Suitable for system types: TN-S, TN-C-S, TT
• Application: Protection of low-voltage electrical installations against indirect lightning effects and switching overvoltages
• Replaceable module: Yes
• Housing material: Thermoplastic
• Colour: Grey

Final note

The SPE040N is a reliable choice for maintaining the integrity of your electrical installation's N-PE protection, with straightforward replacement when needed.
