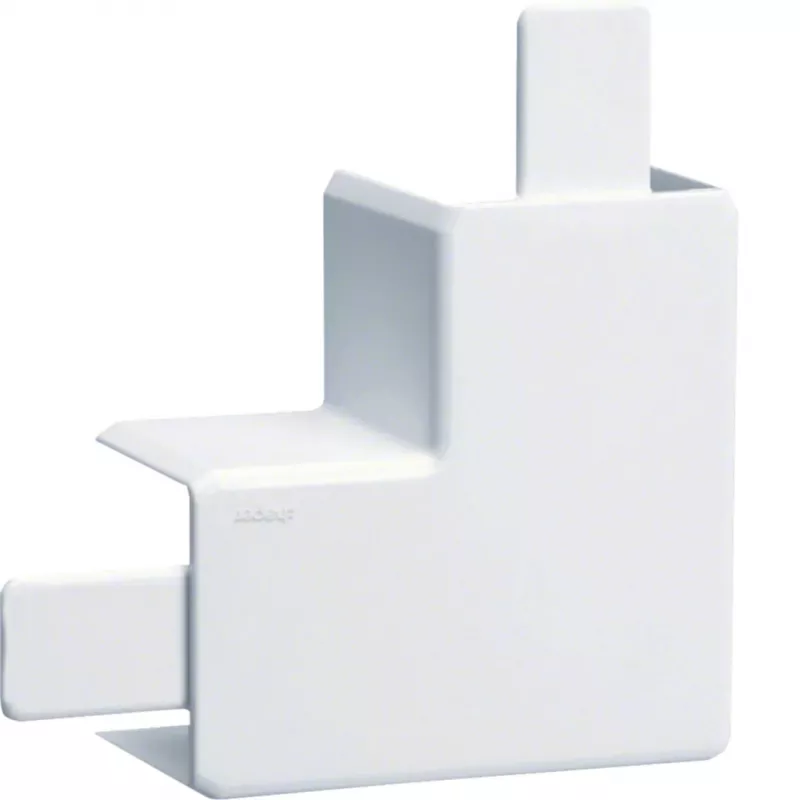

Hager TEH LFF2003559016 Plochý uhol, bezhalogénový, pre LF/LFF 20x33 mm, biela

Flat angle piece for the Tehalit LF/LFF cable trunking system, enabling clean 90-degree direction changes in surface-mounted cable installations. Its halogen-free PC/ABS construction ensures low smoke emission and flame retardancy, while the pure white (RAL 9010) finish blends seamlessly with the trunking profile.

Advantages

Snap-on mounting allows tool-free installation and secure retention. The UV-stable, self-extinguishing material maintains appearance and safety over time. Compatible with 20 x 33 mm duct dimensions, it provides a precise fit without gaps.

Suitable for

• Routing cables around corners in residential and commercial buildings
• Surface-mounted installations where halogen-free materials are required
• Use with Tehalit LF/LFF trunking sections of matching size

Key specifications

• Type: Flat angle / corner piece
• Compatibility: Tehalit LF/LFF cable trunking system
• Duct dimensions: 20 x 33 mm (height x width)
• Material: PC/ABS, halogen-free
• Colour: Pure white (RAL 9010)
• Angle: 90 degrees
• Mounting: Snap-on / clip-on
• Temperature range: -25°C to +60°C
• UV stability: Yes

Recommendations

For a complete installation, pair with Hager LF/LFF trunking lengths and matching end caps. Ensure the trunking profile dimensions match 20 x 33 mm for a secure fit.
