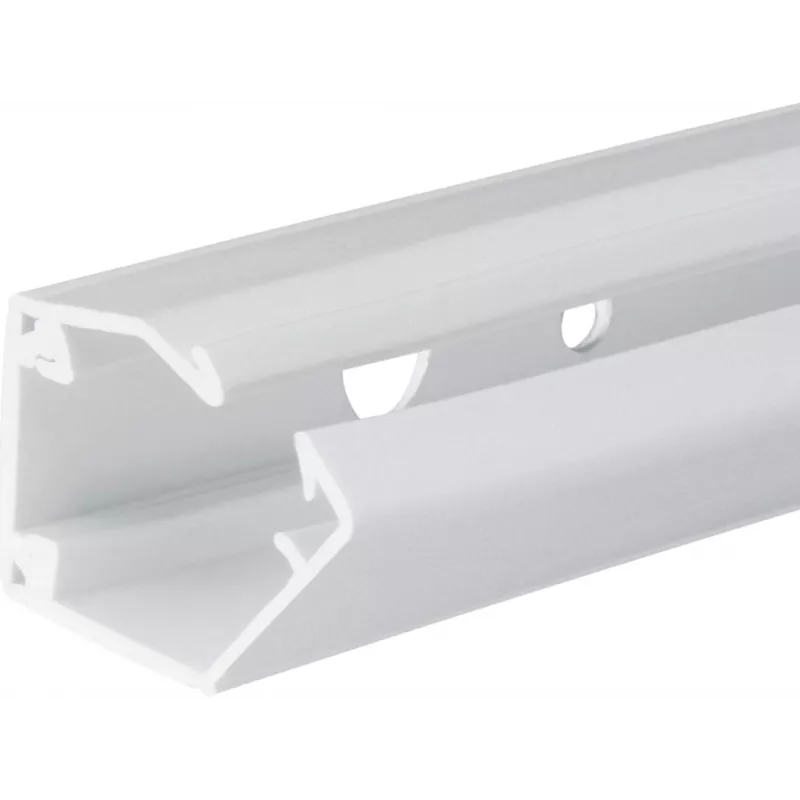

HAGER tehalit.LFR PVC káblový kanál 15x15mm, biely (LFR1501509016A)

Unlike pre-cut trunking sections, this HAGER tehalit.LFR cable channel comes on a roll, so you can cut it to the exact length needed for any job. The slim 15 x 15 mm profile is unobtrusive yet robust, protecting a single cable or small bundle in surface wiring systems. Its white RAL 9016 finish blends well with most interiors.

Highlights

• Supplied on a roll – cut to length and minimise waste
• PVC construction with clip-on cover for quick access
• Base perforation allows secure screw fixing
• Self-extinguishing material improves fire safety
• IK07 impact resistance and IP40 protection
• Operating temperature range -5 °C to +60 °C

In daily use

Installation is straightforward: cut the channel to size with a saw or shears, fix the base through the pre-punched holes, lay the cables, and press the cover into place. The low-profile design is ideal for tight spaces, and the roll format makes long runs simple. Use it for new installations, retrofits, or temporary wiring.

Full specifications

• Brand: HAGER
• Model: LFR1501509016A
• MPN: LFR1501509016A
• EAN: 4012740013734
• Type: Cable Duct & Trunking
• Material: PVC
• Colour: White (RAL 9016)
• External width: 15 mm
• External height: 15 mm
• Mounting: Surface mount
• Supply form: Roll (variable length)
• Cover: Clip-on
• Base perforation: Yes
• Halogen-free: No
• Self-extinguishing: Yes
• Impact resistance: IK07
• Protection degree: IP40
• Operating temperature: -5 to +60 °C
• UV resistant: No (indoor use)
• Compliance: CE, RoHS

Final note

For a dependable, cost-effective cable management solution, this HAGER tehalit.LFR trunking offers the flexibility of a roll and the protection needed for everyday electrical installations.
