Hager TYAS606D KNX Secure spínací/žalúziový aktor 6/3-násobný 16A C-záťaž

Handle heavy capacitive loads with the Hager TYAS606D, a KNX Secure actuator that delivers 16 A per channel across six switch or three blind outputs. Its flexible configuration adapts to diverse building automation needs.

Overview

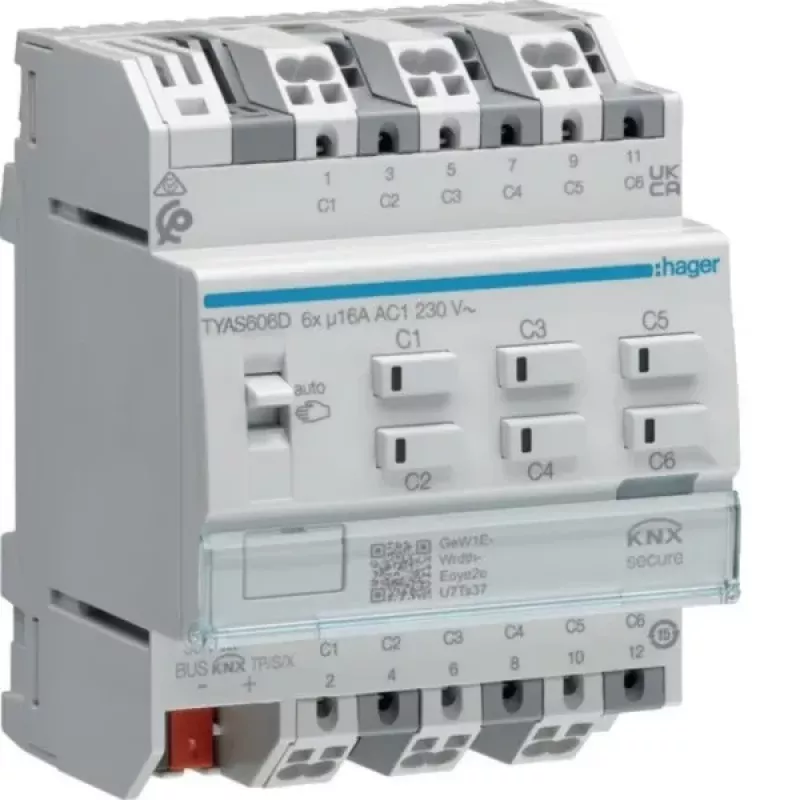

The Hager TYAS606D is a DIN-rail mounted switch/blind actuator for KNX bus systems. It offers six independent switching channels or three blind/shutter channels, each rated for 16 A resistive, inductive, and capacitive (C-load) loads. Manual operation via push buttons and LED status indication simplify commissioning and troubleshooting. The device supports KNX Secure for encrypted communication and requires ETS5 or higher.

What stands out

• Flexible configuration: 6 switch channels or 3 blind channels
• High switching capacity: 16 A per channel, suitable for C-loads
• KNX Secure encryption for enhanced bus security
• Manual override and LED status indicators
• Compact DIN rail mounting (8 TE width)

Technical details

• Bus system: KNX Secure (TP)
• Number of channels: 6 (switching) or 3 (blind/shutter)
• Rated load current per channel: 16 A
• Load type: C-load (capacitive), resistive, inductive
• Rated operating voltage: 230 V AC (load circuits)
• Mounting: DIN rail (REG), width 8 TE
• Manual operation: Yes, push buttons
• Status indication: LED per channel
• Configuration: ETS5 or higher
• Operating temperature: -5 °C to +45 °C
• Degree of protection: IP20
• Connections: Screw terminals, KNX bus terminal
• Bus power consumption: < 10 mA
• Short-circuit current rating: 3 kA

Our verdict

A reliable and secure choice for KNX installations requiring high-current switching and blind control, with flexible channel assignment and robust load handling.
