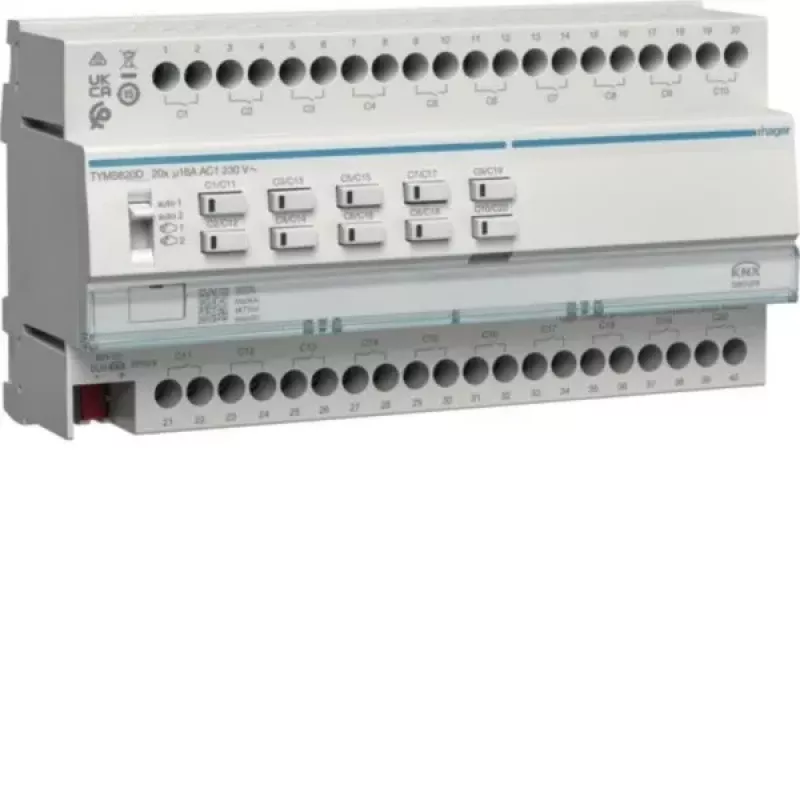

HAGER TYMS620D KNX Secure spínací a žalúziový aktor, 20 spínacích / 10 žalúziových kanálov, 16 A, DIN lišta

Control up to 20 independent switching channels or 10 blind/shutter drives with the HAGER TYMS620D, a KNX Secure actuator rated at 16 A per channel. Its 12-module DIN rail housing packs advanced logic, scene, and time functions for flexible building automation.

Overview

The TYMS620D is a switch and blind actuator for KNX installations. It offers 20 switching channels that can be configured as 10 blind/shutter channels, each rated for 16 A resistive loads up to 3680 W. KNX Secure encryption protects communication against unauthorized access.

What stands out

• 20 switch channels or 10 blind/shutter channels, individually configurable
• KNX Secure for encrypted bus communication
• Manual push-button operation with status feedback
• Integrated logic functions: AND, OR, XOR, gate, threshold
• Scene control and time functions for automation
• DIN rail mounting, 12 modules wide

Technical details

• Bus system: KNX
• Product type: Switch and blind actuator
• Number of switching channels: 20
• Number of blind/shutter channels: 10
• KNX Security: KNX Secure
• Mounting type: DIN rail (REG)
• Module width: 12 TE
• Rated current per channel: 16 A
• Rated voltage: 230 V AC
• Switching capacity resistive load: 3680 W per channel
• Switching capacity LED load: 200 W per channel (C-load)
• Control type: independent control of each channel
• Manual operation: yes, via push buttons
• Status feedback: yes
• Logic functions: yes (AND, OR, XOR, gate, threshold)
• Scene control: yes
• Time functions: yes
• Protection class: IP20
• Operating temperature range: -5 to +45 °C
• ETS software version: ETS 5.7.3 or higher

Our verdict

The TYMS620D offers high channel density and KNX Secure in a single device, making it a solid choice for large residential or commercial KNX projects requiring reliable switching and blind control.
