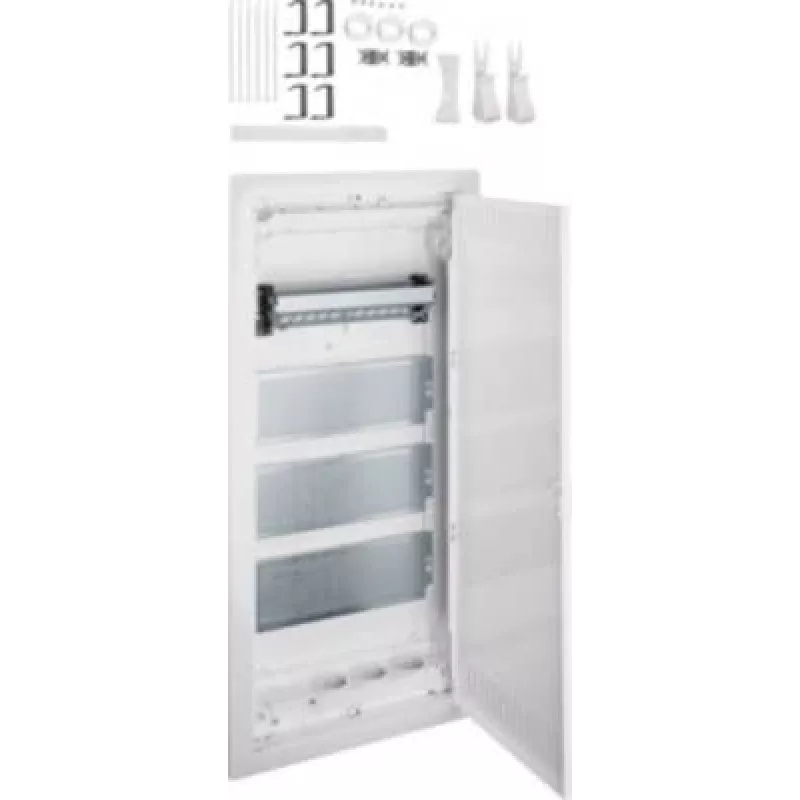

Hager Volta VU48NW Multimediálny zapustený rozvádzač, 4-radový, s drážkovanými oceľovými dverami

The Hager Volta VU48NW is a flush-mounted multimedia distribution board made of plastic, designed for use in residential buildings according to DIN 18015 and for the installation of double-insulated VDI components. It complies with DIN VDE 60670-24 and DIN 43871, and features protection class II and IP30 protection. The board includes a plastic wall box with a standard cable catch, a break-out cable entry slider with snap fastening, an integrated spirit level, and galvanized steel mounting brackets.

Key features

• Flush-mounted plastic distribution board
• Complies with DIN VDE 60670-24 and DIN 43871
• Suitable for residential buildings according to DIN 18015
• For installation of double-insulated VDI components
• Protection class II, IP30
• Rotatable cover frame with ventilation door made of powder-coated and stove-enamelled steel sheet
• 15 mm plaster compensation
• Ventilation door with concealed hand-operated hinges
• Door lock with flush handle recess and self-closing handle
• Door hinge right or left without removing the cover frame
• Upper connection area: patch panel and DIN rail isolated, snapped in for various communication modules
• 2 screw fastenings on the patch panel for functional equipotential bonding according to DIN EN 50310 (VDE 0800-2-310)
• Labelling strip for port labelling included
• Pre-assembled perforated mounting plates made of galvanized steel sheet with 3.2 mm perforation
• Universal retaining bracket for screwless mounting of VDI components directly on the perforated plate
• Lower connection area: 3-way protective contact socket (rotatable 90 degrees)
• Socket directly connectable via terminal
• Protective contact cover for protection class II included
• 3-way socket can also be mounted in two positions on a DIN rail
• Note: Type 3 surge protection module can be connected directly (not included)

Specifications

• Brand: Hager
• MPN: VU48NW
• Product colour: White
• Housing material: Plastic
• International protection code: IP30
• Door hinge: Right
• Width: 348 mm
• Depth: 94.5 mm
• Height: 755.5 mm
