Hager výstupný káblový zväzok 10mm² 4-pólový vidlicová svorka Y89Y

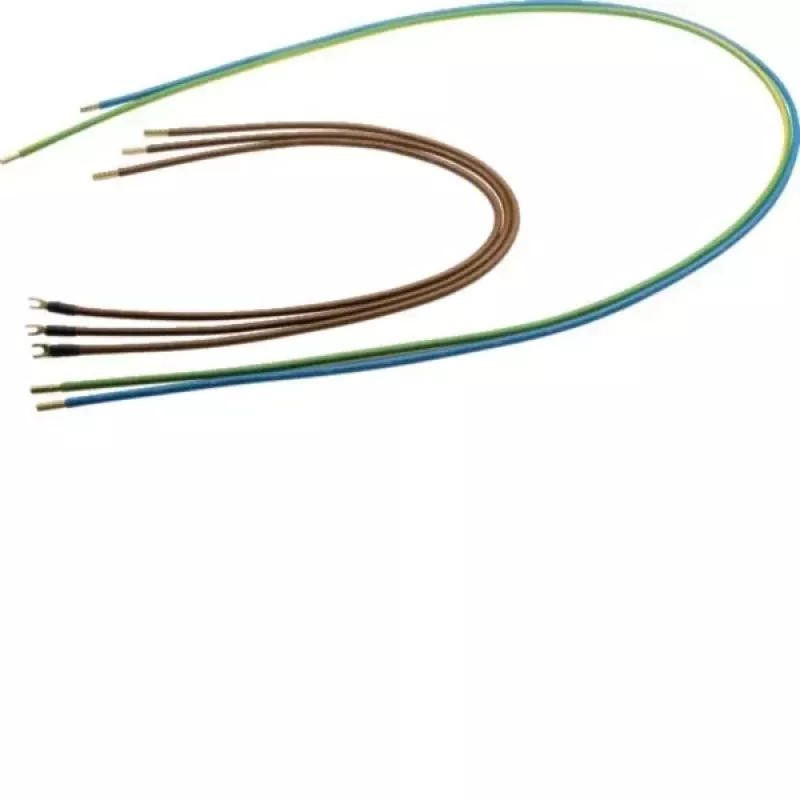

When wiring outgoing circuits in distribution boards, electricians often face a tangle of individual wires that must be cut, stripped, and terminated one by one. This pre-assembled Hager Y89Y cable harness eliminates that repetitive work, providing a ready-made 4-pole connection with fork terminals for fast, consistent installation.

Who is it for

Designed for electrical installers and panel builders who work with Hager distribution boards and busbar systems. It suits professionals who value time savings and uniform wiring quality in residential and commercial electrical installations.

Main features

• Pre-assembled 4-pole outgoing cable harness with 10 mm² copper conductors.
• Fork terminals (Gabel) for secure screw connection to circuit breakers or busbars.
• Colour-coded conductors (L1, L2, L3, N) for easy phase and neutral identification.
• Rated for 400 V AC and 63 A, suitable for typical outgoing circuits.
• 250 mm cable length provides flexibility for neat routing inside the board.
• PVC insulation for durability in dry indoor environments.

Specifications

• Product type: Cable harness
• Application: Outgoing circuit connection in distribution boards
• Number of poles: 4
• Conductor cross-section: 10 mm²
• Connection type: Fork terminal
• Cable length: 250 mm
• Rated voltage: 400 V AC
• Rated current: 63 A
• Conductor material: Copper
• Insulation material: PVC
• Mounting method: Screw connection
• Operating temperature range: -5°C to +70°C
• Compatibility: Hager distribution boards and busbar systems
• Usage environment: Indoor, dry locations
• Pre-assembled: Yes

Tips

Before installation, verify that the circuit breaker terminals accept fork terminals and that the cable length fits your board layout. Keep the harness away from sharp edges and moving parts to prevent insulation damage.
