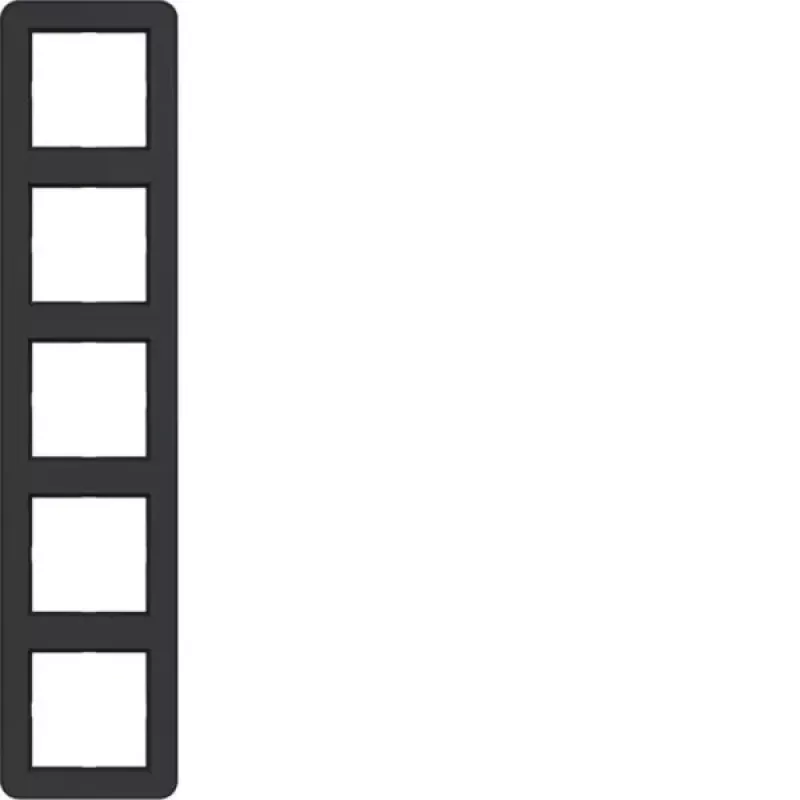

HAGER WAD7500BM rám 5-násobný C.1 Night Black Matt

The HAGER WAD7500BM is a high-quality 5-gang cover frame from the C.1 design line, finished in a stylish night black matt. Designed for indoor use, this frame accommodates standard 55x55mm inserts such as switches, sockets, and dimmers. Its clip-on mounting allows for quick and secure installation in both horizontal and vertical orientations.

Advantages

This frame offers a sleek, modern appearance with a durable thermoplastic construction. The matt surface is resistant to UV light and impacts (IK03), ensuring long-lasting performance. It is halogen-free and suitable for a wide operating temperature range from -5 to +40 °C.

Suitable for

• Standard 55x55mm switch and socket inserts
• Dimmers, data jacks, and other modular devices
• Indoor residential and commercial installations

Key specifications

• Product Type: Cover Frame
• Number of Gangs: 5-gang
• Design Line: C.1
• Color: Night Black Matt
• Material: Thermoplastic
• Surface Finish: Matt
• Mounting Type: Clip-on
• Installation Orientation: Horizontal and Vertical
• Halogen-Free: Yes
• IP Protection Class: IP20
• Approx. RAL Color: RAL 9005 (Deep Black)
• Impact Resistance: IK03
• UV Resistance: Yes
• Operating Temperature Range: -5 to +40 °C
• Depth of Frame: 10 mm

Recommendations

For a complete installation, pair this frame with compatible HAGER C.1 inserts. Ensure the mounting surface is clean and dry before installation.
