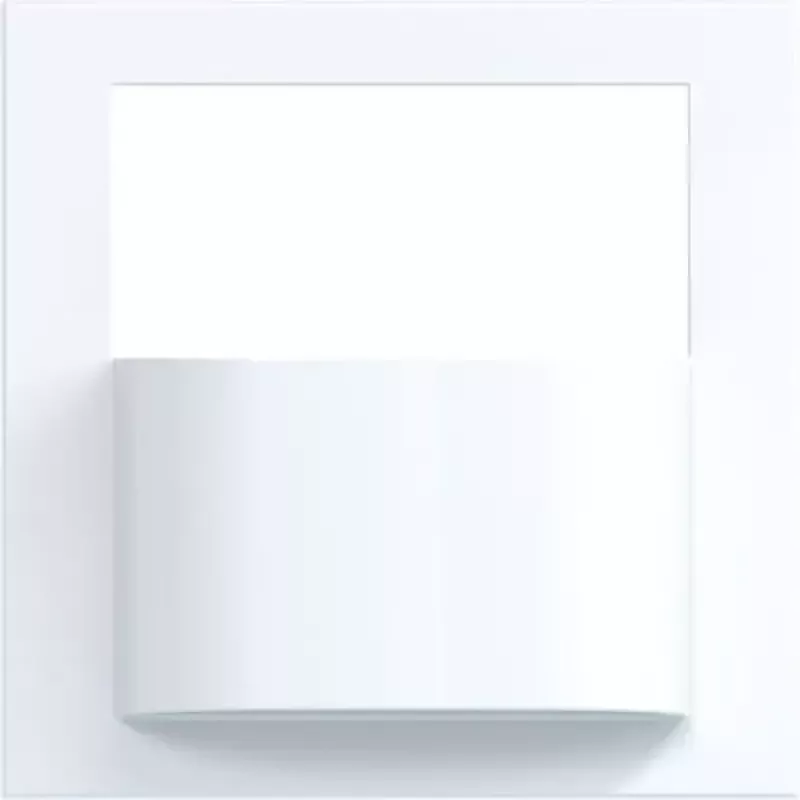

HAGER WAN7030WG nadstavbový detektor prítomnosti, 360° PIR, montáž 1,1-2,2 m, polárna biely

Presence detector attachment with 360° passive infrared detection, covering a diameter of 7 m at 2.5 m mounting height. Designed for flush-mounted installation on compatible Hager WAN base units, it enables brightness-dependent and time-delayed switching with a teach-in function.

Advantages

360° detection angle ensures comprehensive room coverage. Light sensor range from 5 to 2000 lux and adjustable time delay from 10 seconds to 30 minutes allow precise automation of lighting. Halogen-free thermoplastic housing in polar white blends with modern interiors.

Suitable for

• Indoor lighting control in offices, corridors, and utility rooms
• Use with Hager WAN base units (e.g., WAN7000, WAN7700 series)
• Flush-mounted installations requiring discreet presence detection

Key specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 360°
• Detection range diameter: 7 m at 2.5 m mounting height
• Recommended mounting height: 1.1 m – 2.2 m
• Light sensor range: 5 – 2000 lux
• Time delay adjustment: 10 s – 30 min
• IP rating: IP20
• Material: Thermoplastic
• Colour: Polar white
• Operating temperature: -5 °C to +45 °C
• Halogen-free: Yes

Recommendations

Verify compatibility with the existing Hager WAN base unit before installation. Mount at a height between 1.1 m and 2.2 m for optimal detection performance.
