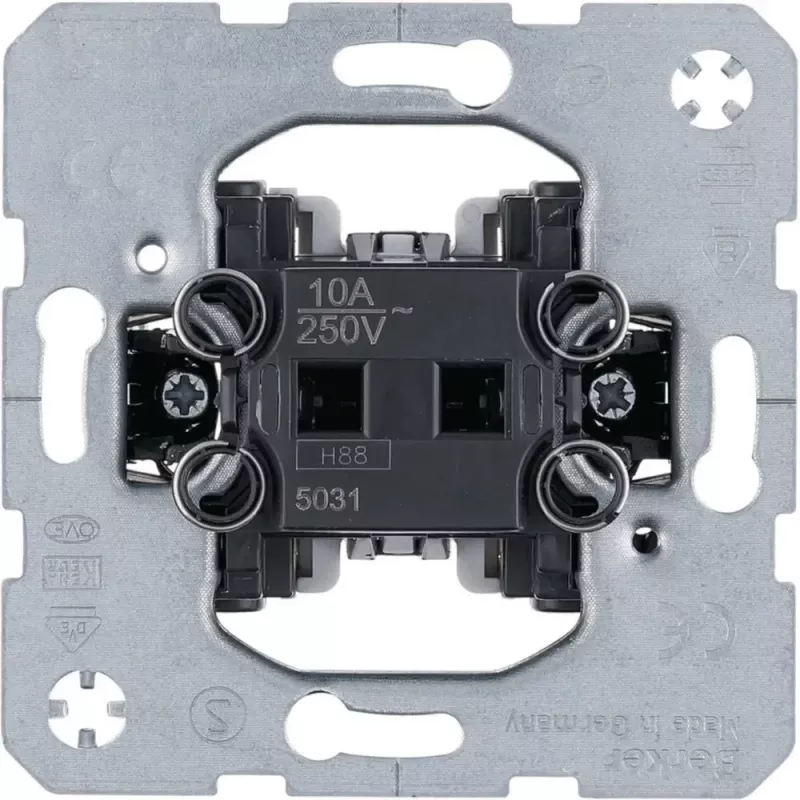

Hager WDE5031 Mechanizmus tlačidla, 1-pólový spínací, do omietky, 10 A, 250 V AC

This flush-mounted push button mechanism from Hager delivers momentary impulse switching with a 1-pole normally open contact, rated for 10 A at 250 V AC. It provides reliable control for lighting, bells, and impulse-driven circuits in residential and commercial installations.

Advantages

The mechanism features a momentary action that returns to its original position after actuation, ensuring safe and predictable operation. Screw terminals accommodate up to 2 x 2.5 mm² rigid or flexible conductors, simplifying installation and providing a secure connection. Constructed from durable thermoplastic, it offers excellent resistance to impact and heat, while the IP20 protection class suits indoor use. Compliance with EN 60669-1 guarantees adherence to strict European safety and performance standards.

Suitable for

• Residential lighting control
• Doorbell and chime activation
• Staircase lighting circuits with impulse relays
• Commercial buildings requiring momentary switching
• Integration into Hager flush-mounted frames (mechanism only, rocker and cover plate sold separately)

Key specifications

• Product type: Push button mechanism
• Switch function: Momentary (impulse)
• Number of poles: 1
• Contact configuration: Normally open (N.O.)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (in-wall)
• Connection type: Screw terminals
• Terminal capacity: Up to 2 x 2.5 mm²
• Material: Thermoplastic
• IP protection class: IP20
• Operating temperature: -5°C to +40°C
• Standards compliance: EN 60669-1
• Module width: 2

Recommendations

For a complete installation, pair this mechanism with a compatible Hager rocker and cover plate from the same design line. Ensure the circuit is de-energised before installation and verify that the total load does not exceed the rated current. Use appropriate flush-mounted boxes and follow local wiring regulations.
